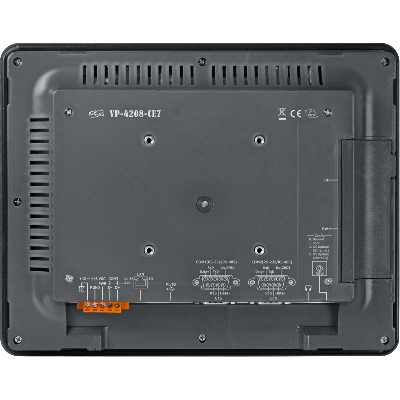

VP-4208-CE7 CR
10.4 Win-GRAF Based ViewPAC with Cortex-A8 CPU and WinCE 7.0
- 15", 12.1", 10.4", 8.4", 7" TFT LCD
- Cortex-A8, 720 MHz/1 GHz CPU
- CE7 (Windows Embedded Compact 7)
- Embedded Win-GRAF SoftLogic (IEC 61131-3)
- Hard Real-Time Capability
- PoE (Power over Ethernet)
- NEMA 4/IP65 Compliant Front Panel
- Modbus RTU/TCP (Master, Slave)
- Support eLogger HMI
- Audio with Earphone-Out
- Operating Temperature: -10 ~ +60 °C
INTRODUCTION
The Win-GRAF ViewPAC Series (VP-2208-CE7/VP-3208-CE7/VP-4208-CE7/VP-5208-CE7/VP-6208-CE7) are WinCE7 based Win-GRAF SoftLogic ViewPAC that combine computing and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Cortex-A8 (720 MHz/1 GHz) CPU, TFT LCD and a variety of connectives including Gigabit Ethernet, USB port, RS-232 and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -10°C ~ 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.
The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.
PAC SPECIFICATIONS
LCD
Diagonal Size: 10.4" (4:3)
Resolution: 800 x 600
Brightness (cd/m2): 400
Contrast Ratio: 500: 1
LED Backlight Life (hrs): 50,000
Touch Panel: 5-wire, resistive type; light transmission: 80 %
LED Indicator: 2 (Run, PWR)
System Software
OS: Windows CE 7.0
Framework Support: .NET Compact Framework 3.5
Embedded Service: FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
SDK Provided: Dll for Visual Studio.Net
Multilanguage Support: English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
Development Software
Win-GRAF Software: Win-GRAF: IEC 61131-3 standard
Languages: LD, ST, FBD, SFC, IL
Max. Code Size: 2 MB
Scan Time: 3 ~ 15 ms for normal program
15 ~ 50 ms (or more) for complex or large program
Non-Win-GRAF: Options: VS .NET 2008 (VB.NET, C# .NET)
CPU Module
CPU: Cortex-A8, 1 GHz
SDRAM: 512 MB (DDR3)
MRAM: 128 KB
Flash (SSD): 256 MB
EEPROM: 16 KB
Memory Expansion: SD socket with 4 GB SDHC card (support up to 32 GB)
RTC: (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for software copy protection
Dual Watchdog Timers: Yes
Rotary Switch: Yes (0 ~ 9)
Communication Ports
Ethernet: 1 x RJ-45 10/100/1000 Base-TX
USB 2.0 (host): 2
COM 1: RS-232/RS-485 (DB9 connector); 2500 VDC isolated
COM 2: RS-232 (TxD, RxD, CTS, RTS) /RS-485 (Data+, Data-) (9-wire DB9 connector); 2500 VDC isolated
COM 3: RS-485 (Data+, Data-, GND); 2500 VDC isolated
Audio: Earphone-out
Mechanical
Dimensions (W x H x D) Unit: mm: 291 x 229 x 54
Panel Cut-Out (W x H) Unit: mm: 277 x 215, ± 1
Installation: Panel Mounting
Ingress Protection: Front panel: NEMA 4/IP65
Environmental
Operating Temperature: -10 °C ~ +60 °C
Storage Temperature: -20 °C ~ +70 °C
Ambient Relative Humidity: 10 % ~ 90 % RH (non-condensing)
Power
Input Range: +12 VDC ~ +48 VDC
Power from PoE: IEEE 802.3af
Isolation: 1 kV
Consumption: 13 W
