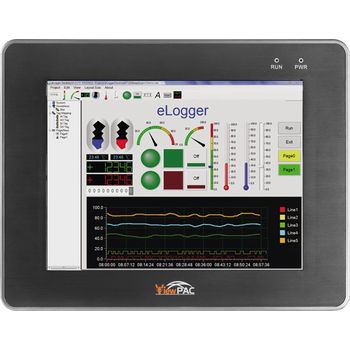

10.4 Standard ViewPAC with PXA270 CPU, WinCE 5.0 and 3 I/O Slots (Multilanguage Version)
SOFTWARE
- Windows CE.NET 5.0 Inside
- Easy Remote Maintenance Via Ethernet
- FTP Server
- VCEP software
- Built-in OPC Server: NAPOPC_CE5
- An OPC Server for SCADA Software
- Integrates Local/Remote I/O Modules Via RS-232/485 or Ethernet
- Provides Library for eVC, C# or VB.NET
- Supports Modbus and DCON Protocols
- Development Software
- Visual Studio.NET 2005/2008 and eVC
- SDK/Demo Programs for C#, VB.NET & eVC
HARDWARE
- PXA 270 CPU (32-bit & 520 MHz)
- IP65 Compliant Front Panel
- 3.5"/5.7"/10.4" TFT LCD (5.7/10.4 LCDs are with Touch Panel)
- Rubber Keypad with 24/6 Keys
- Audio with MIC-In and Line-Out
- 64-bit Hardware Serial Number for Software Protection

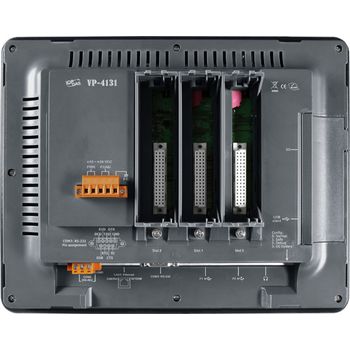

- 3 Slots for High Profile I/O Modules
- Rich I/O Expansion Ability
- Ethernet
- RS-232/422/485
- FRnet
- CAN bus
- Dual Battery Backup SRAM (512 KB)
- One Ethernet Port
- 2 Serial Ports (RS-232, RS-485)
- Operating Temperature: -20 ~ +70 °C
INTRODUCTION
ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5"/5.7"/10.4" TFT LCD and a rubber keypad.
Its operating system, Windows CE.NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Running Windows CE.NET 5.0 in the ViewPAC gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC Ketc.
Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
SPECIFICATIONS
System Software
OS: Windows CE.NET 5.0
.Net Compact Framework: 3.5
Embedded Service: FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided: Dll for eVC, Dll for Visual Studio.Net 2005/2008
CPU Module
CPU: PXA270 or compatible (32-bit and 520 MHz)
SDRAM: 128 MB
Dual Battery Backup SRAM: 512 KB (for 5 years data retain)
Flash: 128 MB
EEPROM: 16 KB
Expansion Flash Memory: microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card)
RTC (Real Time Clock): Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079
64-bit Hardware Serial Number: Yes
Dual Watchdog Timer: Yes
Rotary Switch: Yes (0 ~ 9)
Communication Interface
Ethernet Port: RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 1.1 (host): 2
USB 1.1 (client): 1
COM 0: Internal communication with I-87K modules in slots
COM 2: RS-485 (D2+, D2-); self-tuner ASIC inside; 2500 VDC Isolated.
COM 3: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated
MMI (Man Machine Interface)
LCD: 10.4" TFT (Resolution 800 x 600)
Touch Panel: Yes
Rubber Keypad: -
Audio: Earphone-Out
LED Indicators: 2 Dual-Color LEDs (PWR, RUN)
I/O Expansion Slots
Slot Number: 3 (For High Profile I-8K and I-87K Modules Only)
Mechanical
Dimensions (W x L x H): 182 mm x 158 mm x 125 mm
Ingress Protection: Front panel: IP65
Environmental
Operating Temperature: -20 °C ~ +70 °C
Storage Temperature: -30 °C ~ +80 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
Power
Input Range: +10 VDC ~ +30 VDC
Isolation: 1 kV
Capacity: 2.5 A, 5 V supply to I/O expansion slots
Consumption: 7.2 W (0.3 A @ 24 VDC)
