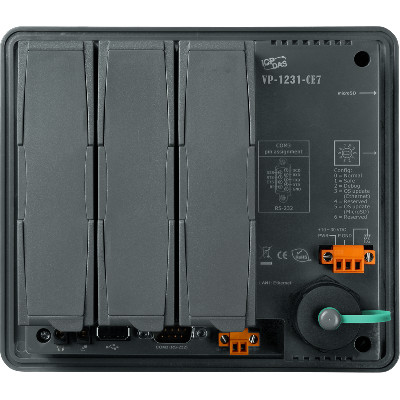

VP-1231-CE7 CR ICP DAS ViewPAC

VP-1231-CE7 CR ICP DAS

VP-1231-CE7 CR ICP DAS

VP-1231-CE7 CR

5.7 Standard ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots

Quantity:

Price

€ 1.060,82

(VAT excluded)

€ 1.294,20(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.294,20

Availability: 15 business days

SKU: 110729

Model: VP-1231-CE7 CR

Need Help?


  • 5.7", 10.4 and 15" TFT LCD
  • Cortex-A8, 32-bit and 1 GHz CPU
  • CE7 (Windows Embedded Compact 7)
  • Hard Real-Time Capability
  • 64-bit Hardware Serial Number
  • Support eLogger HMI (free)
  • Dual Watchdog Timers7
  • Ultra-Rugged Construction and Reliable Design
  • Operating Temperature: -20 °C to +70 °C

Introduction

The VP-x231-CE7 are CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and
control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU,
TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Local I/O slots are
available to use our I-8K and I-87K series I/O modules and remote I/O expansion is available
to use our Ethernet I/O modules and RS-485 I/O modules. Designed to operate over a wide
-10 °C to 60 °C ambient temperature range, the fanless design offers the ultimate in reliability
with no moving parts.

Windows Embedded Compact 7 is a componentized, hard real-time, high performance, and
highly reliable operating system. CE7 delivers rich user experiences and a unique connection
to Windows PCs, servers, services, and devices.



Windows Embedded Compact 7

CE7 is a compact and hard real-time OS used to quickly create time critical and high
performance applications. Using CE7 gives an ability to run PC-based control software such
as Visual Basic .NET, Virtual C#, SCADA software, SoftPLC… etc.
 ● Support PC based software: Visual Studio .NET
 ● Web server, FTP server, Telnet server

Specifications

LCD Display
Diagonal Size: 5.7" TFT
Resolution: 640 x 480
Touch Panel: Yes
Rubber Keypad: 6 Keys

System Software
OS: Windows CE 7.0
Framework Support: .NET Compact Framework 3.5
Embedded Service: FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
SDK Provided: Dll for Visual Studio.Net 2008
Multilanguage Support: English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese

CPU Module
CPU: Cortex-A8 (32-bit and 1.0 GHz)
SDRAM: 512 MB
MRAM: 128 KB
Flash (SSD): 256 MB
EEPROM: 16 KB
Expansion Flash Memory: microSD socket with one microSD card (support up to 32 GB)
RTC (Real Time Clock) Yes, provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for software copy protection
Dual Watchdog Timers: 0.8 second
LED Indicator: 3 Dual-Color LEDs (PWR, RUN, LAN1, L1, L2, L3; L1 to L3 for User Programmable)
Rotary Switch: Yes, 0 ~ 9

Communication Ports
Ethernet: RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0: 1
COM2 RS-485: (D2+, D2-); self-tuner ASIC inside; 2500 VDC Isolated
COM3 RS-232: (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated
Audio: Microphone-In and Earphone-Out

I/O Expansion Slots
Slot Number: 3 (COM0, for high profile I-8K and I-87K modules only)

Mechanical
Dimensions (W x H x D): 182 mm x 125 mm x 158 mm
Panel Cut-out (W x H): 153 mm x 136 mm + 1.0 mm
Ingress Protection: Front panel: IP65

Environmental
Operating Temperature: -20 °C to +70 °C
Storage Temperature: -30 °C to +80 °C
Ambient Relative Humidity: 10 % to 90 % RH (non-condensing)

Power
Input Range: +10 VDC to +30 VDC
Redundant Power Inputs: -
Isolation: 1 kV
Consumption: 0.3 A @ 24 VDC
