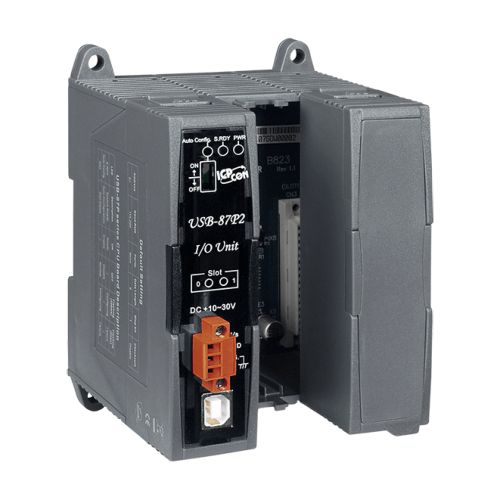

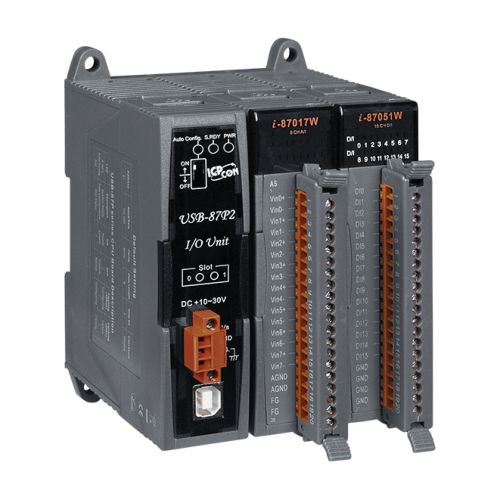

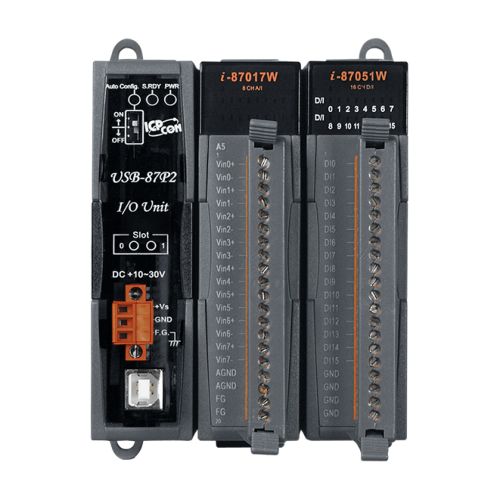

USB-87P2-G CR
2-slot USB I/O Expansion Unit with Intelligent CPU Module (DCON Protocol)
- Hot Swap Allowed
- One USB Port
- Auto Configuration
- LED Indicators for Fault Detection
- DCON Protocol
- 1/2/4/8 I/O Slots for I-87K Modules
- Operating Temperature: -25 ~ +75°C
INTRODUCTION
USB-87Pn is an unit to expand I/O via the USB. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75°C). To simplify installation and maintenance of I/O modules, it provides many useful features, such as: hot swap allowed, auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.
There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, ActiveX, Labview driver, InduSoft driver, Linux driver, OPC server. The I-87K series I/O modules plugged in the USB-87Pn can be easily integrated into variant software system.
SPECIFICATIONS
Interface Type (Full speed with USB 1.1 specifications)
Cable: USB type A connector
Baud Rate: 115200 bps Default
Isolation: 3000 VDC
ESD Protection: +/-4 K Contact Discharge and +/-8 K Air Discharge
Communication Protocol: DCON Protocol (ASCII Format)
Switch
DIP Switch: 1-bit × 1, For auto configuration
LED Indicators
Power: Yes
System Ready: Yes
Auto Configuration: Yes
Slot Status: Yes
I/O Expansion Slots
Hot Swap: Yes
Auto Configuration: Yes
Support Module Type: High profile I-87K module only
Slots Numbers: 2
Mechanical
Dimensions (W x L x H): 95 mm x 132 mm x 111 mm
Installation: DIN-Rail or Wall Mounting
Environmental
Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH (non-condensing)
Power
Input Range: +10 ~ +30 VDC
Reverse Polarity Protection: Yes
Isolation: 1000 VDC
Frame Ground: Yes
Consumption: 1 W
Power Board Driving: 8 W
