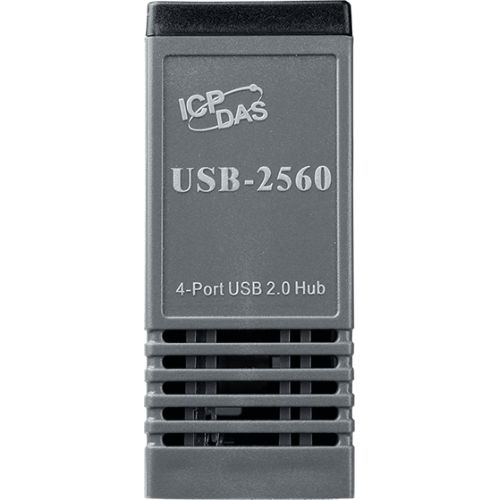

USB-2560/S CR
4-port Industrial USB 2.0 Hub Includes CA-USB18 Cable and GPSU06U-6 Power Supply (6 W)
The USB-2560 allows you to add multiple high performance USB 2.0 peripheral devices to your computer (Or XP-8000 series). It supports the USB 2.0 high-speed mode that can achieve 480 Mbps data transmitting rate.
The USB-2560 only supports self-powered mode (drawing power from an external power supply). Externally powered USB hubs are the only way to guarantee the broadest compatibility for USB devices.
USB-2560/S CR: 4-Port Industrial USB 2.0 Hub (RoHS) with GPSU06U-6 (Power Supply)
- Compliant with USB Specification Revision 2.0
- Built-in NEC uPD720114 USB 2.0 Hub Controller
- Provides 4 Downstream Ports
- Supports High-speed (480 Mbps) and Full-speed (12 Mbps)
- Only Supports Self-powered Mode
- +10 ~ +30 VDC Power Input (power adapter included for USB-2560/S)
- Supports Downstream Port Status with LED
- DIN-Rail
Interface

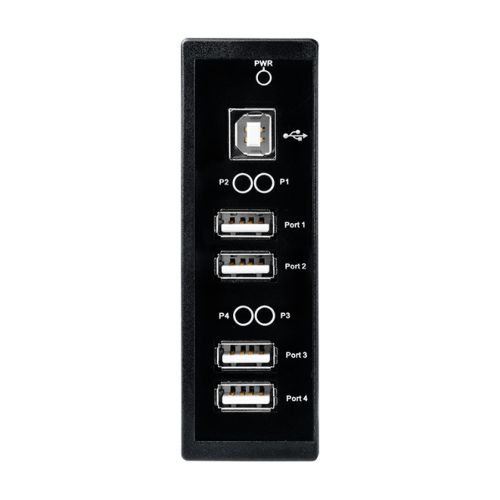

Ports: Upstream x 1 (Type B) ; Downstream x 4 (Type A)
Compatibility: Universal serial bus ; Specification Rev. 2.0/1.1/1.0
Transfer Speed:
- 480 Mbit/s-high speed mode
- 12 Mbit/s- full speed mode
- 1.5 Mbit/s-low speed mode
Supply Current: 500 mA Max. per port
Cable Included: CA-USB18 (1.8 M Cable) x 1
Power Supply Included (USB-2560/S Only): GPSU06U-6 x 1 for 250mA per port
LED Indicators
Power: 1 LED
Downstream Ports: 4 LEDs
Power
Input Voltage Range: +10 ~ +30 VDC
Power Consumption:
- 0.25 A @ 24 VDC for 250mA per port.
- 0.5 A @ 24 VDC for 500mA per port.

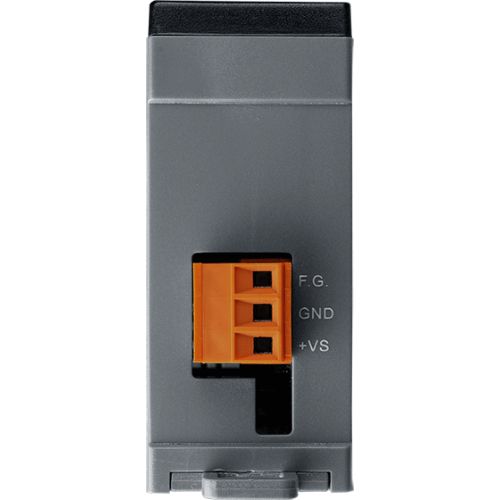

Power Input Connection: Removable 3-Pin Terminal Block
Mechanical
Casing: Plastic
Flammability: UL 94V-0 materials
Dimensions (W x L x H): 31 mm x 157 mm x 11 6mm
Installation: DIN-Rail
Environment
Operating Temperature: 0 °C ~ +70 °C
Storage Temperature: -20 °C ~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing
