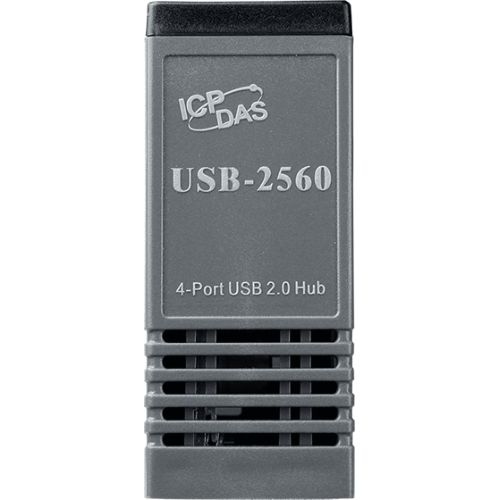

USB-2560 CR
4-port Industrial USB 2.0 Hub
The USB-2560 allows you to add multiple high performance USB 2.0 peripheral devices to your computer (Or XP-8000 series). It supports the USB 2.0 high-speed mode that can achieve 480 Mbps data transmitting rate.The USB-2560 only supports self-powered mode (drawing power from an external power supply). Externally powered USB hubs are the only way to guarantee the broadest compatibility for USB devices.
- Compliant with USB Specification Revision 2.0
- Built-in NEC uPD720114 USB 2.0 Hub Controller
- Provides 4 Downstream Ports
- Supports High-speed (480 Mbps) and Full-speed (12 Mbps)
- Only Supports Self-powered Mode
- +10 ~ +30 VDC Power Input (power adapter included for USB-2560/S)
- Supports Downstream Port Status with LED
- DIN-Rail
Interface

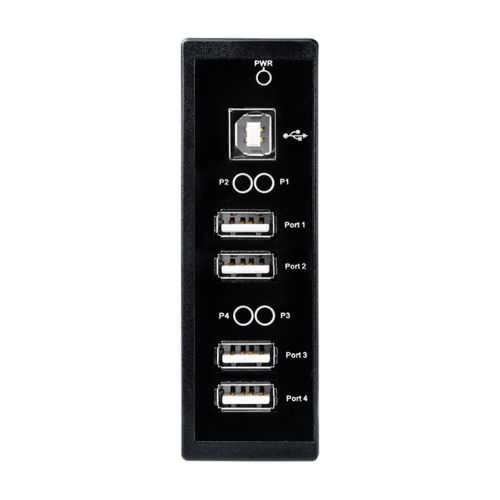

Ports: Upstream x 1 (Type B), Downstream x 4 (Type A)
Compatibility: Universal serial bus; Specification Rev. 2.0/1.1/1.0
Transfer Speed: 480 Mbit/s-high speed mode, 12 Mbit/s- full speed mode, 1.5 Mbit/s- low speed mode
Supply Current: 500 mA max. per port
Include Cable: CA-USB18 (1.8m Cable) x 1
Power Supply Included (USB-2560/S Only): GPSU06U-6 x 1 for 250 mA port
LED Indicators
Power: 1 LED
Downstream Ports: 4 LEDs
Power
Input Voltage Range: +10 ~ +30 Vdc
Power Consumption: 0.25 A @ 24 Vdc for 250 mA per port, 0.5 A @ 24 Vdc for 500 mA per port

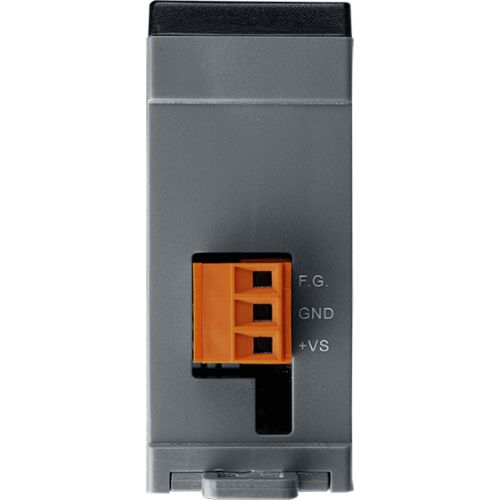

Power Input Connection: Removable 3-Pin Terminal Block
Mechanical
Case: Plastic
Flammability: UL 94V-0 materials
Dimensions (W x L x H): 33 x 78 x 107 mm
Installation: DIN-Rail
Environment
Operating Temperature: 0 °C ~ +70 °C
Storage Temperature: -20 °C ~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing
