features and benefits

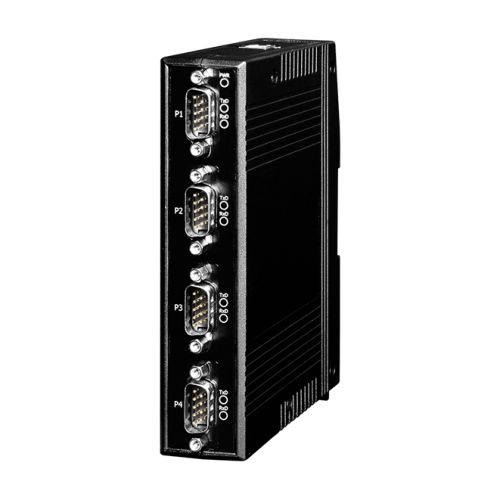

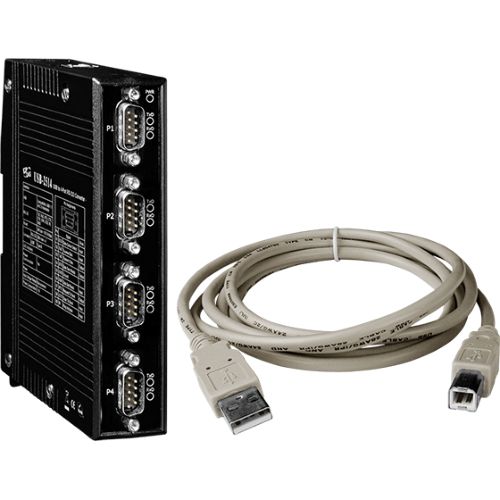

USB-2514 is USB to 4-Port RS-232 converter that provides a simple way add up to four RS-232 ports on your PC.
The USB-2514 is support USB 1.1, USB 2.0 standards and easy setting RS-232 transmission speed from 300 bps to 921600 bps.
- Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
- Power and data flow indicator for troubleshooting
- Driver Supports Windows 7(32/64-bit)/8(32/64-bit)/10(64-bit)/11(64-bit)/Linux
specifications
LED Indicators| Status | 1 x Power and Communication |
|---|

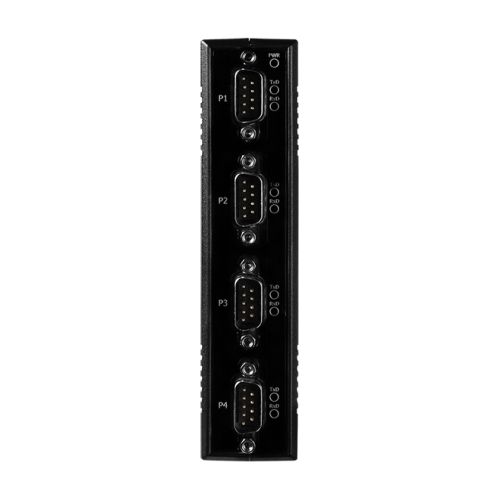

COM Ports| Ports | 4 x RS-232 |
|---|
| Baud Rate | 300 bps ~ 921600 bps |
|---|
USB| Specification | Compatibility: USB 1.1 and 2.0 standards |
|---|

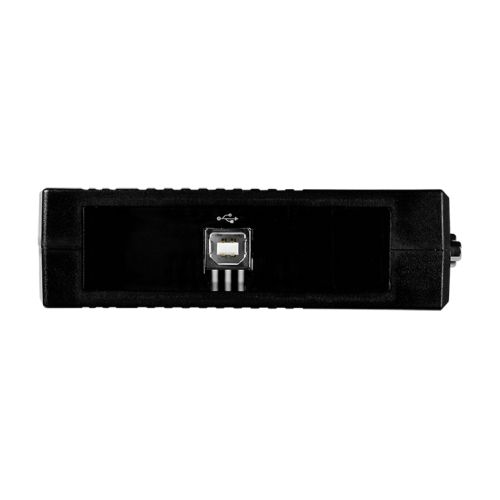

| Connector | Type B |
|---|
Power| Input Range | Bus-powered |
|---|
| Consumption | 1 W |
|---|
Mechanical| Casing | Plastic |
|---|
| Dimensions (mm) | 31 x 157 x 116 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +75 °C |
|---|
| Humidity | 10 ~ 90% RH, non-condensing |
|---|
