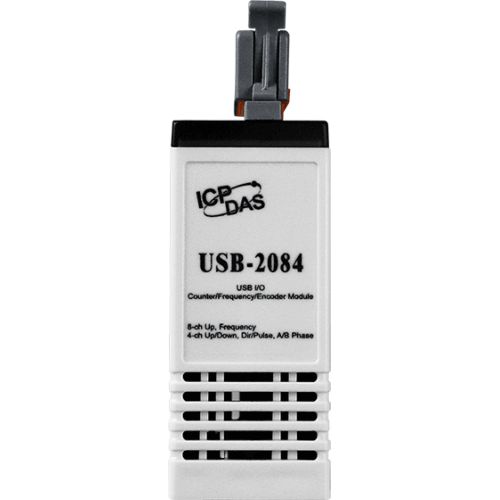

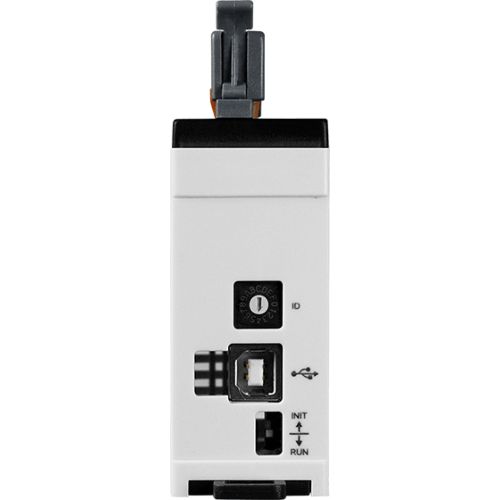

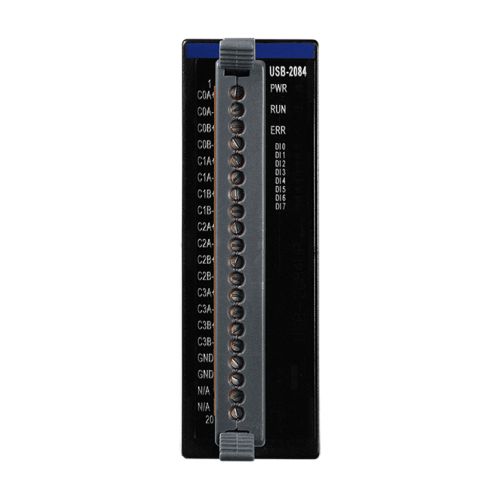

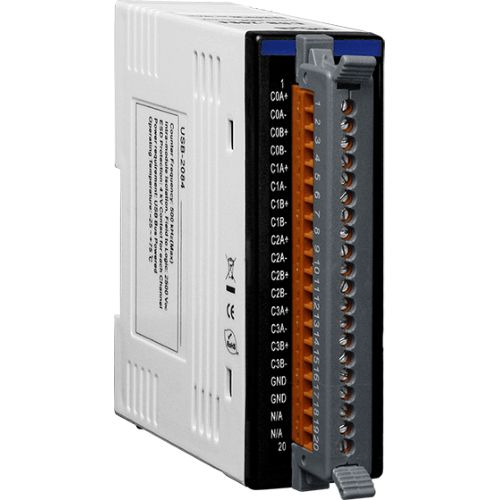

USB-2084 CR ICP DAS USB Relay IO

• 8-channel for Frequency and Up Counters Types.

• 4-channel for Up/Down, Dir/Pulse and A/B Phase Counters Types.

• Support digital filter (1~32767 us)

• 4kV ESD protection

• No external power supply (USB Bus Powered)

• Plug-and-Play without driver installation

• Lockable USB cable

• Built-in dual watchdog (hardware/software)

• Module supported for Win2000/XP and Win7 (32/64 bit)



The USB-2084 is a full-speed USB device with 8-channel for Frequency and Up Counters, or 4-channel for Up/Down, Dir/Pulse and A/B Phase Counters, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove a peripheral. The USB I/O utility can help users to configure and test USB-2084 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2084 is the perfect way to add measurement and control capability to any USB capable computer.



• Counter measurement

• Frequency measurement

• Motion control



OS Support: 1 ~ 32767 uS (Software programmable)



Watchdog Timer: 1 Hardware watchdog (1.6 second)

1 Software watchdog (Programmable)



Intra-module Isolation: 3000 VDC



ESD (IEC 61000-4-2): 4 kV contact for each terminal

8 kV air for random point



Status: 3 x Power and Communication

8 x Counter Input



Contact Rating: 0.25 A @ 250 VAC

0.24 A @ 220 VAC



Counter/Frequency/Encoder Input

Channels: 4-channel Up/Down Counter (CW/CCW)

4-channel Dir/Pulse Counter (Bi-direction)

4-channel A/B Phase (Quadrature Counting)

8-channel Up Counter

8-channel Frequency

Type: Up, Frequency, Up/Down, Dir/Pulse, A/B Phase

ON Voltage Level: Isolated: +4.5 VDC ~ +30 VDC

TTL: +2 VDC ~ +5 VDC

OFF Voltage Level: Isolated: +1 VDC Max.

TTL: 0 VDC ~ +0.8 VDC

Frequency Accuracy: ±0.4%

Individual Channel Configuration: Yes

Intra-module Isolation: 2500 VDC

Isolated, Frequency: 250 KHz Max.

Non-isolated, Frequency: 500 KHz Max.

Isolated, Input Level: ON Voltage Level: +4.5 VDC ~ +30 VDC

OFF Voltage Level: +1 VDC Max.

Low Pass Filter: 1 ~ 32767 uS (Software programmable)



Specification: USB 2.0 Full-Speed (12Mbps)



Consumption: 1.3 W (Max.)



Dimensions (mm): 33 x 107 x 102 (W x L x H)



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -40 ~ +85 °C

Humidity: 10 ~ 95% RH, Non-condensing
