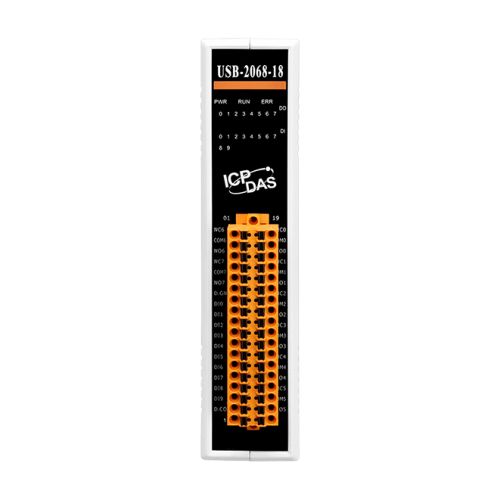

USB-2068-18 CR ICP DAS USB Digital IO

• 10-channel digital input and 8-channel relay output.

• Dry Contact and Wet Contact Selectable via Wire Connections

• All Digital Input Channels can used as 32-bit Counters

• Form C Relay Output

• 8kV ESD protection

• Wide Operating Temperature Range

• 3000 VDC Intra-Module Isolation

• USB 2.0 Full-Speed (12Mbps)

• USB Bus Powered

• Lockable USB cable

• Driver Free



The USB-2068-18 is an 8-channel Form C relay output and 10-channel digital input module with the USB interface. All digital input channels can be used as 32-bit counters. In addition, the digital input channels can be selected as sink/source type and dry/wet contact via wire connections. There are also options for configuring power-on and safe values. 8 kV ESD protection(for all channels) and 3750 VDC intra-module isolation(for digital input channels) are also provided to enhance noise protection capabilities in industrial environments. Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring. The USB I/O utility can help users to configure and control USB-2068-18 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2068-18 is the perfect way to add control capability to any USB capable computer.



• Automation

• Measurement and testing

• Laboratory research



Watchdog Timer: 1 Hardware watchdog (1.6 second)

1 Software watchdog (Programmable)



Intra-module Isolation: 3000 VDC



ESD (IEC 61000-4-2): ±8 kV contact for each terminal

±16 kV air for random point



Status: 3 x Power and Communication

12 x Power Relay



Channels: 10

Type: Dry Contact, Close to GND

Wet Contact, Sink/Source

ON Voltage Level: +10 ~ 50 VDC

OFF Voltage Level: +4 VDC Max.

Max. Counts: 4294967295 (32-bit)

Frequency: 500 Hz

Min. Pulse Width: 1 ms

Input Impedance: 10 KΩ

Overvoltage Protection: 70 VDC



Channels: 8 Form C (SPDT-NO, NC)

Contact Rating: 0.25 A @ 250 VAC

0.5 A @ 125 VAC

2 A @ 30 VDC

Operate Time: 5 ms (Max.)

Release Time: 6 ms (Max.)

Electrical Endurance: 2 x 10^5 ops (at 30 V / 2 A)

Mechanical Endurance: 1 x 10^8 ops

Surge Strength: Surge Strength

Power on Value: Yes, Programmable

Safe Value: Yes, Programmable



Specification: USB 2.0 Full-Speed (12Mbps)



Consumption: 2.3 W (Max.)

Mechanical:

Dimensions (mm): 31 x 147 x 126 (W x L x H)



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -40 ~ +85 °C

Humidity: 10 ~ 95% RH, Non-condensing
