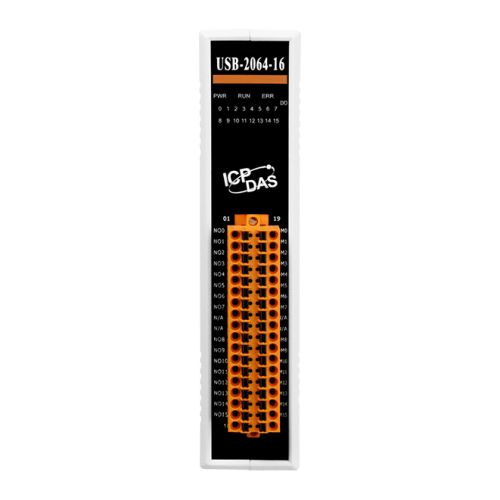

USB-2064-16 CR ICP DAS USB Relay IO

USB-2064-16 CR ICP DAS

USB-2064-16 CR ICP DAS

USB-2064-16 CR

USB I/O Module with 16-ch Power Relay Includes 1.5 M USB Cable (CA-USB15)



€ 206,90

(VAT excluded)

€ 252,42(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 252,42

Availability: 15 business days

SKU: 106626

Model: USB-2064-16 CR

Need Help?

The USB-2064-16 is a full-speed USB device with 16-channel power relay output module, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. The USB-2064-16 provides a power rated relay with 3A maximum current contact rating for switching. Besides, the USB-2064-16 also features power-on value to customize the initial state. Moreover, the safety value can be used to secure the devices in the field. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove the USB-2064-16.
The USB I/O utility can help users to configure and test USB-2064-16 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB / C++ / C#.NET / VB.NET). Therefore, the USB-2064-16 is the perfect way to add control capability to any USB capable computer.
USB-2064-16 CR: 16-channel Power Relay Output Module (RoHS)

  • 16-channel power relay output
  • 3A maximum current contact rating
  • Safety functionality when communication failed
  • Wide operating temperature range
  • 3000 VDC Intra-Module isolation
  • USB 2.0 Full-Speed
  • USB Bus Powered
  • Plug-and-Play without driver
  • Lockable USB cable
  • PWR / RUN / ERR LED indicators

Relay Output

Channels: 16
Output Type: Form A (SPST-NO)
Contact Rating (Resistive Load): 3 A @ 250 VAC (47 ~ 63 Hz) ; 3 A @ 30 VDC
Operate Time: 10 ms (Max.)
Release Time: 5 ms (Max.)
Insulation Resistance: 1,000 MΩs at 500 VDC
Dielectric Strength

  • Between Open Contact: 1000 VAC (1 min.)
  • Between Coil and Contacts: 3000 VAC (1 min.)


  • Mechanical: 2 x 10^7 ops
  • Electrical: 1 x 10^5 ops

Power On Value: Yes
Safe Value: Yes


Interface: USB 2.0 Full-Speed
Watchdog: 1 Hardware watchdog (1.6 second) ; 1 Software watchdog (Programmable)

LED Indicators

System LED Indicators: 3 LED as Power, Run and Error
I/O LED indicators: Yes, 16 LED as Relay Output Indicator


Intra-Module Isolation, Field-to-Logic: 3000 VDC

EMS Protection

ESD (IEC 61000-4-2): ±8 kV contact for each terminal ; ±16 kV air for random point


Dimensions (W × D × H): 31 mm × 129 mm × 147mm


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, non-condensing


Power Consumption: 2.3 W (Max.)
