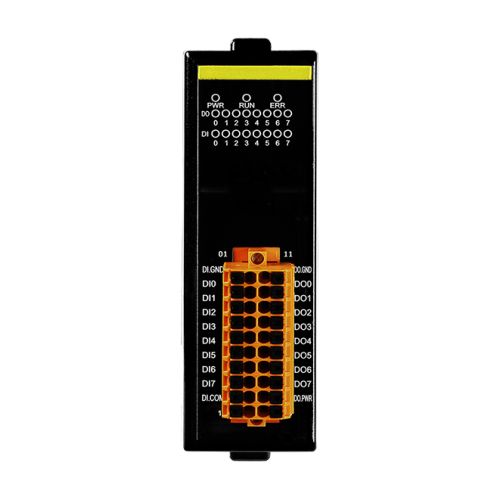

USB-2055 CR ICP DAS USB Digital IO


USB-2055 CR

USB I/O Module with Isolated 8-ch Digital input (Dry, Wet) and 8-ch Digital output (Sink, NPN) Includes 1.5M USB Cable (CA-USB15)



€ 139,19

(VAT excluded)

€ 169,81(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 169,81

Availability: 15 business days

SKU: 106321

Model: USB-2055 CR

Need Help?

The USB-2055 is a full-speed USB device with 8 digital input and digital output channels module, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. The USB-2055 offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The USB-2055 supports source-type output with short circuit protection. There are options to enable both power-on and safety values. The USB-2055 has 16 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove the USB-2055.
The USB I/O utility can help users to configure and test USB-2055 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2055 is the perfect way to add control capability to any USB capable computer.
USB-2055 CR: 8-channel Isolated Digital Input and 8-channel Isolated Digital Output (RoHS)

  • 8-channel digital input and digital output
  • Dry Contact and Wet Contact Selectable via Wire Connections
  • Long Distance Measurement
  • All Channels can be used as 16-bit Counters
  • Short Circuit, Overload and Overvoltage Protection
  • Configurable Power-on Value Settings
  • Safety functionality when communication failed
  • Wide operating temperature range:-25°C~+75°C
  • 2500 VDC Intra-Module isolation
  • RoHS compliant
  • USB 1.1/2.0 Full-Speed
  • No external power supply (USB Bus Powered)
  • Plug-and-Play without driver
  • Lockable USB cable
  • Support firmware update via USB
  • Utility tool for module configuration and I/O testing easily and quickly
  • PWR / RUN / ERR LED indicators
  • Built-in dual watchdog (hardware / software)
  • Provide API library (VC/VB/BCB/.NET)
  • Module supported for Win2000/XP and Win7 (32/64 bit)

Digital Input

Channels: 8

  • Dry Contact: Source
  • Wet Contact: Sink/Source

On Voltage Level

  • Dry Contact: Close to GND
  • Wet Contact: +10 VDC ~ +50 VDC

Off Voltage Level

  • Dry Contact: Open
  • Wet Contact: +4 VDC Max.

Effective Distance For Dry Contact: 500 meters Max.
Input Impedance: 10 KΩ
Overvoltage Protection: 70 VDC

  • Max. Count: 65535 (16-bit)
  • Max. Input Frequency: 500 Hz
  • Min. Pulse Width: 1 ms

Digital Output

Channels: 8
Type: Open Collector, Sink (NPN)
Load Voltage: +3.5 ~ +50 VDC
Max. Load Current: 650 mA/Channel
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A (with short-circuit protection)
Power-on Value: Yes
Safe Value: Yes


Interface: USB 2.0 Full-Speed
Watchdog: 1 Hardware watchdog (1.6 second) ; 1 Software watchdog (Programmable)

LED Indicators

System LED Indicators: 3 LED as Power, Run and Error
I/O LED indicators: 16 LEDs as Digital Input and Output Indicators

EMS Protection

ESD (IEC 61000-4-2): 4 kV contact for each terminal ; 8 kV air for random point


Dimensions (W x L x H): 72 mm x 123 mm x 35 mm


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, non-condensing


Power Consumption: 1.40 W
