USB-2055-32 CR ICP DAS USB Digital IO

USB-2055-32 CR ICP DAS

USB-2055-32 CR ICP DAS

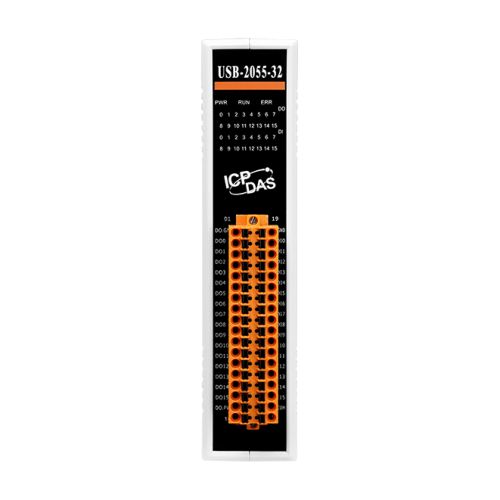

USB-2055-32 CR

USB I/O Module with Isolated 16-ch Digital input (Dry, Wet) and 16-ch Digital output (Sink, NPN) Includes 1.5M USB Cable (CA-USB15)

Quantity:

Price

€ 212,16

(VAT excluded)

€ 258,84(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 258,84

Availability: 15 business days

SKU: 118615

Model: USB-2055-32 CR

Need Help?


 Features

• 16-channel digital input and digital output
• Dry Contact and Wet Contact Selectable via Wire Connections
• All Digital Input Channels can be used as 32-bit Counters
• Short Circuit, Overload and Overvoltage Protection
• Configurable Power-on Value Settings
• Safety functionality when communication failed
• 4kV ESD protection
• 3000 VDC Intra-Module Isolation
• USB 2.0 Full-Speed (12Mbps)
• USB Bus Powered
• Lockable USB cable
• Driver Free


Introduction

The USB-2055-32 is a full-speed USB device with 16 digital input and digital output channels module, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. The USB-2055-32 offers 16 isolated channels for digital input and 16 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 32-bit counters. The USB-2055-32 supports source-type output with short circuit protection. There are options to enable both power-on and safety values. The USB-2055-32 has 32 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove the USB-2055-32. The USB I/O utility can help users to configure and test USB-2055-32 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB / C++ / C#.NET / VB.NET). Therefore, the USB-2055 is the perfect way to add control capability to any USB capable computer.


Applications

• Automation
• Measurement and testing
• Laboratory research


Specifications

CPU Module

Watchdog Timer: 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)


EMS Protection

ESD (IEC 61000-4-2): 4 kV contact for each terminal
8 kV air for random point


LED Indicators

Status: 3 x Power and Communication
32 x Digital Input and Output


Digital Input/Counter

Channels: 16
Type: Dry Contact,
Wet Contact
Sink/Source (NPN/PNP): Dry: Source
Wet: Sink/Source
ON Voltage Level: Dry: Close to GND
Wet: +10 VDC ~ +50 VDC
OFF Voltage Level: Dry: Open
Wet: +4 VDC Max.
Max. Counts: 4294967295 (32-bit)
Frequency: 500 Hz
Min. Pulse Width: 1 ms
Effective Distance: 500 meters Max.
Input Impedance: 10 KΩ
Overvoltage Protection: 70 VDC


Digital Output

Channels: 16
Type: Open Collector, Sink (NPN)
Load Voltage: +3.5 ~ +50 VDC
Load Current: 600 mA/Channel
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A (with short-circuit protection)
Power on Value: Yes, Programmable
Safe Value: Yes, Programmable


USB

Specification: USB 2.0 Full-Speed (12Mbps)


Power

Consumption: 2.2 W


Mechanical

Dimensions (mm): 31 x 147 x 126 (W x L x H)


Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
