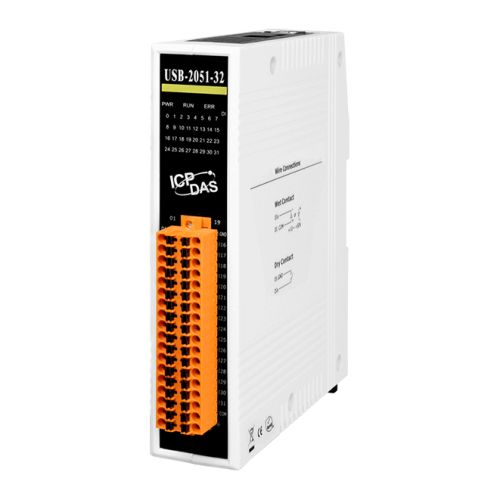

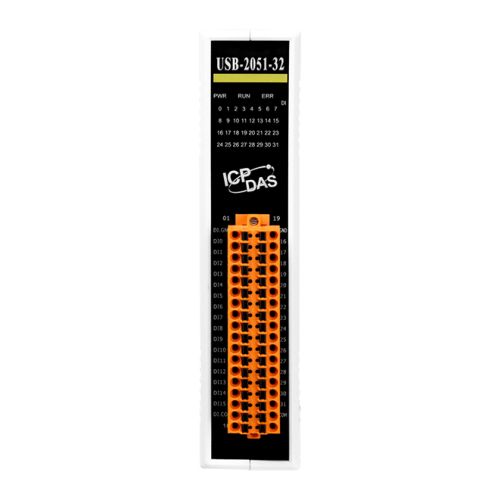

USB-2051-32 CR ICP DAS USB Digital IO

USB-2051-32 CR ICP DAS

USB-2051-32 CR ICP DAS

USB-2051-32 CR

USB I/O Module with Isolated 32-ch Digital input (Dry, Wet) Includes 1.5M USB Cable (CA-USB15)

Quantity:

Price

€ 188,09

(VAT excluded)

€ 229,47(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 229,47

Availability: 15 business days

SKU: 106624

Model: USB-2051-32 CR

Need Help?


The USB-2051-32 is a full-speed USB device with 32 digital input channels module, and offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. The USB-2051-32 offers 32 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters. All channels not only feature photocouple isolation, but can also be used as 32-bit counters. The USB-2051-32 has 32 LED indicators that can be used to monitor the status of the digital input channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. With the true Plug & Play capability, it needs not opening up your computer chassis to install boards-just plug in the module, then get or set the data. Owing to another USB feature known as "hot-swapping", users do not even need to shut down and restart the system to attach or remove the USB-2051-32.
The USB I/O utility can help users to configure and test USB-2051-32 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2051-32 is the perfect way to add control capability to any USB capable computer.
USB-2051-32 CR: 32-channel Isolated Digital Input Module (RoHS)

  • 32-channel sink type digital output
  • Dry Contact and Wet Contact Selectable via Wire Connections
  • Long Distance Measurement
  • All Channels can be used as 16-bit Counters
  • Wide operating temperature range: -25°C~+75°C
  • 2500 VDC Intra-Module isolation
  • RoHS compliant
  • USB 1.1/2.0 Full-Speed
  • No external power supply (USB Bus Powered)
  • Plug-and-Play without driver
  • Lockable USB cable
  • Support firmware update via USB
  • Utility tool for module configuration and I/O testing easily and quickly
  • PWR/RUN/ERR LED indicators
  • Built-in dual watchdog (hardware/software)
  • Provide API library (VC/VB/BCB/.NET)
  • Module supported for Win2000/XP and Win7 (32/64 bit)

Digital Input

Channels: 32
Type:

  • Dry Contact: Source
  • Wet Contact: Sink/Source

On Voltage Level

  • Dry Contact: Close to GND
  • Wet Contact: +10 VDC ~ +50 VDC

Off Voltage Level

  • Dry Contact: Open
  • Wet Contact: +4 VDC Max.

Effective Distance For Dry Contact: 500 meters Max.
Input Impedance: 10 KΩ
Overvoltage Protection: 70 VDC
Counter

  • Max. Count: 4294967295 (32-bit)
  • Max. Input Frequency: 500 Hz
  • Min. Pulse Width: 1 ms

Communication

Interface: USB 2.0 Full-Speed
Watchdog: 1 Hardware watchdog (1.6 second) ; 1 Software watchdog (Programmable)

LED Indicators

System LED Indicators: 3 LED as Power, Run and Error
I/O LED indicators: 32 LEDs as power relay indicators

EMS Protection

ESD (IEC 61000-4-2): 4 kV contact for each terminal ; 8 kV air for random point

Mechanical

Dimensions (W x L x H): 31 mm x 129 mm x 147 mm

Environmental

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, non-condensing

Power

Power Consumption: 1.60 W
