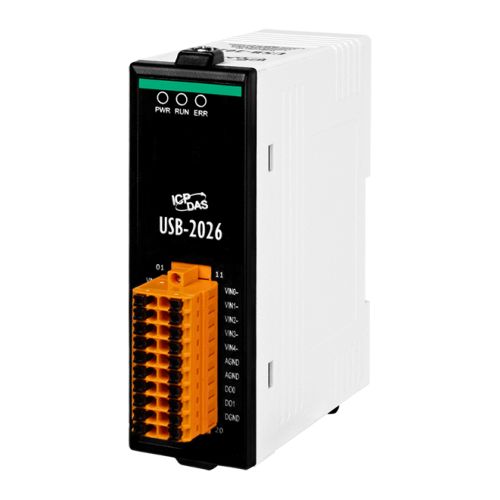

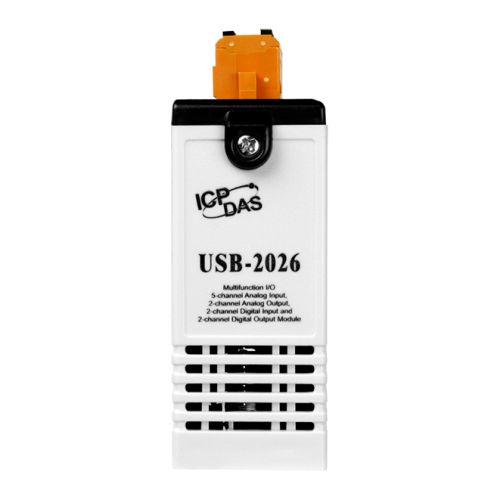

USB-2026 CR, USB I/O Module with 5-ch Analog input, 2-ch Analog output, 2-ch Digital input and 2-ch Digital output Includes 1.5M USB Cable (CA-USB15)
USB-2026 CR
USB I/O Module with 5-ch Analog input, 2-ch Analog output, 2-ch Digital input and 2-ch Digital output Includes 1.5M USB Cable (CA-USB15)
Free Shipping
Features
• Multifunction (5 AI, 2 AO, 2DI and 2 DO)
• Overload and Short Circuit Protection for Digital Output
• 240 Vrms Overvoltage Protection for Voltage Input
• 4kV ESD protection
• Wide Operating Temperature Range
• 3000 VDC Intra-Module Isolation
• USB 2.0 Full-Speed (12Mbps)
• USB Bus Powered

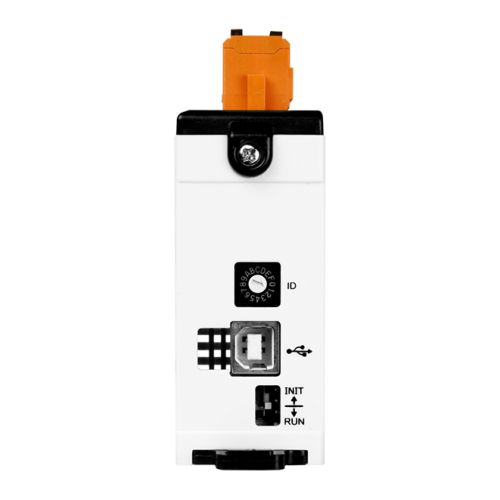

• Lockable USB cable
• Driver Free
Introduction
The USB-2026 is a multifunction module that includes 5 analog input channels, 2 analog output channels, 2 digital input channels, 2 digital output channels and compatibles with USB 2.0 full-speed. It equips small size, portable, USB bus powered, various input type features to help user build up own project easily and quickly. Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring. ICP DAS USB I/O is a small size module. You can use these I/O modules in wide range application, ex: fan-less control or measurement, automatically testing with BOX-PC…etc. ICP DAS USB I/O provides 10kS/s data acquisition functionality. User can apply this to real-time demanded application, ex: noise measurement. The USB-2026 provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms.
Applications
• Automation
• Measurement and testing
• Laboratory research
Specifications
CPU Module
Watchdog Timer: 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
EMS Protection
ESD (IEC 61000-4-2): 4 kV contact for each terminal
8 kV air for random point

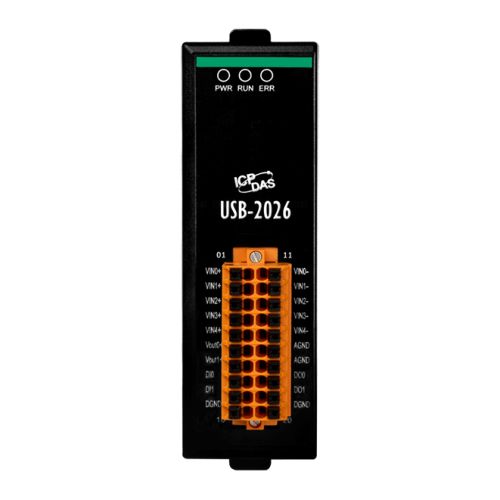

LED Indicators
Status: 3 x Power and Communication
Analog Input
Channels: 5 Differential
Type: Voltage
Current
Range: Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
Resolution: Normal Mode: 14-bit
Fast Mode: 12-bit
Accuracy: Normal Mode: ±0.1% FSR
Fast Mode: ±0.5 % FSR
Sampling Rate: Normal Mode: 10 Hz
Fast Mode: 200 Hz
Input Impedance: Voltage: 20 MΩ
Current: 135 Ω
Overvoltage Protection: Voltage: 120 VDC
Current: N/A
Overcurrent Protection: Voltage: N/A
Current: Yes, 50 mA at 110 VDC
Zero Drift: ±20 μV/°C
Span Drift: ±25 ppm/°C
Analog Output
Channels: 2
Range: Voltage: +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC
Current: +0 ~ +20 mA, +4 ~ +20 mA
Resolution: 12-bit
Accuracy: ±0.1% of FSR
Open Wire Detection: Yes, for 4 ~ 20 mA only
Voltage Output Capability: 10 V @ 20 mA
Power-on Value: Yes
Safe Value: Yes
Digital Input/Counter
Channels: 2
Type: Dry Contact, Source
ON Voltage Level: Close to GND
OFF Voltage Level: Open
Max. Counts: 4,294,967,285 (32-bit)
Frequency: 100 Hz
Min. Pulse Width: 10 ms
Input Impedance: 10 KΩ, 0.5 W
Overvoltage Protection: ±57 VDC
Digital Output
Channels: 2
Type: Isolation Open Collector (Sink)
Load Voltage: +3.5 ~ +50 VDC
Load Current: 700 mA/Channel
Overvoltage Protection: ±60 VDC
Overload Protection: 1.4 A (with short-circuit protection)
Short-circuit Protection: Yes
Power on Value: Yes, Programmable
Safe Value: Yes, Programmable
USB
Specification: USB 2.0 Full-Speed (12Mbps)
Power
Consumption: 2.2 W
Mechanical
Dimensions (mm): 33 x 110 x 96 (W x L x H)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
