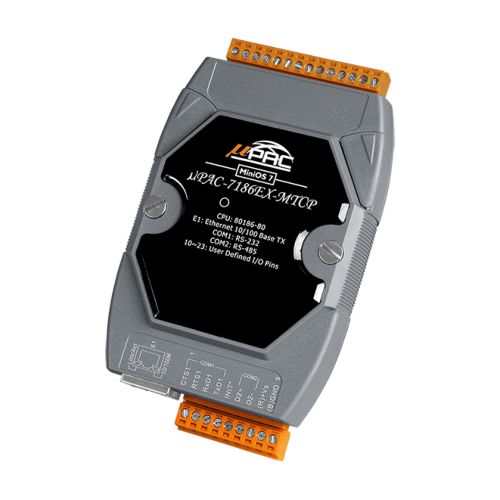

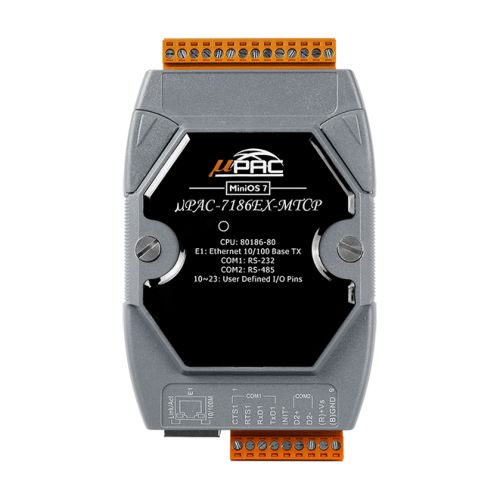

uPAC-7186EX-MTCP-G CR, Palm-sized Programmable Modbus Gateway with 80186-80 CPU and Modbus Firmware (Gray Cover)
uPAC-7186EX-MTCP-G CR
Palm-sized Programmable Modbus Gateway with 80186-80 CPU and Modbus Firmware (Gray Cover)
Free Shipping
Features
• Incorporate Serial Devices in an Ethernet network
• Supports Modbus TCP to RTU Gateway
• Built-in High Performance MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Communication Interfaces
‣ 10/100 Base-TX Ethernet
‣ RS-232/485
• 64-bit Hardware Serial Number
• I/O Expansion Bus Interface
• Programmable LED Indicator
• Build-in Watchdog Timer
Introduction
The uPAC-7186EX-MTCP is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/485 devices to an Ethernet network. The μPAC-7186EX-MTCP also works as a Modbus TCP to RTU gateway that supports most SCADA/HMI communications based on the Modbus TCP protocol.
ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).
For hardware expansion, the uPAC-7186EX-MTCP also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 50 boards available for uPAC-7186EX-MTCP, you can choose one of them to expand hardware features.
Specifications
Software
OS: MiniOS7
Development: C Language
CPU Module
CPU: 80186, 80 MHz or compatible
64-bit Hardware Serial Number: Yes
EEPROM: 16 KB
Flash: 512 KB
NVRAM: 31 Bytes
SRAM: 512 KB
Real Time Clock: Provide seconds, minutes, hours, day of week, month, year
Watchdog Timer: Yes
LED Indicators
Status: 1 x System
I/O Expansion
I/O Type: X-board
COM Ports
Ports: 1 x RS-232, 1 x RS-485
Baud Rate: 115200 bps Max.
Ethernet
Ports: 1 x RJ-45, 10/100 Base-TX
Power
Input Range: +10 ~ 30 VDC
Consumption: 1.5 W
Mechanical
Dimensions (mm): 72 x 123 x 33 (W x H x D)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 5 ~ 90 %, Non-condensing
