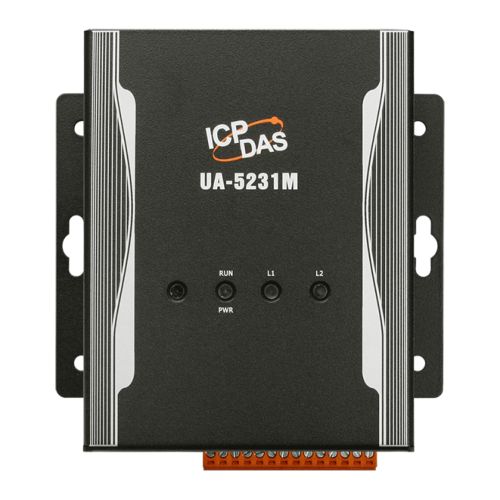

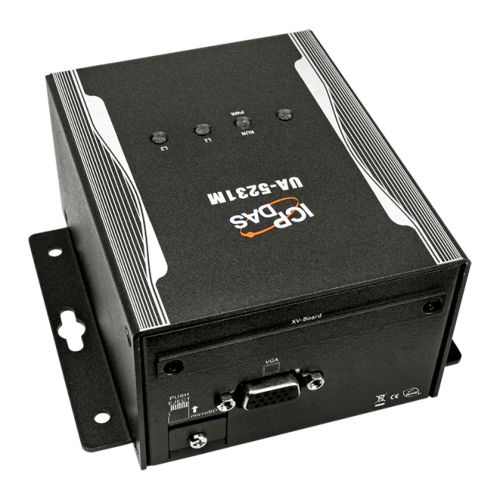

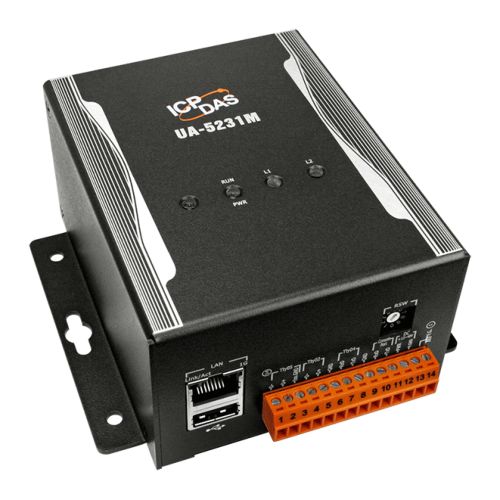

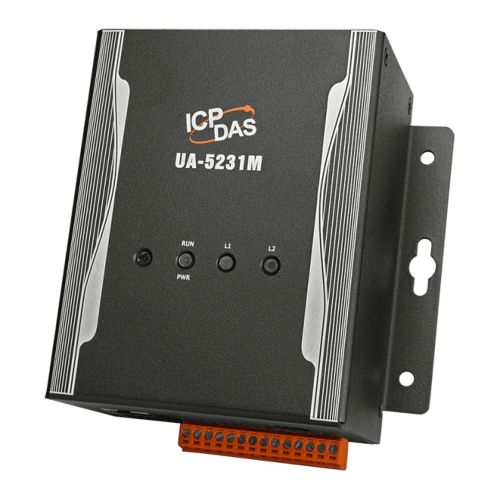

UA-5231M CR ICP DAS Communication Server

UA-5231M CR ICP DAS

UA-5231M CR ICP DAS

UA-5231M CR

IIoT Communication Server with 1 Ethernet Port (Metal Case)

Quantity:

Price

€ 607,16

(VAT excluded)

€ 740,74(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 740,74

Availability: 15 business days

SKU: 118900

Model: UA-5231M CR

Need Help?


 Features

• OPC UA Server
• MQTT Client Service
• MQTT Broker Inside
• Support to Execute OPC UA and MQTT Communication at the Same Time
• ARM CPU, 1.0 GHz
• 512 MB RAM and 8 GB Flash
• Linux kernel 3.2.14 OS
• Real-Time Capability
• Support Local Data Logger / Remote Database
• Support IFTTT Logic Control & APP Notify
• Support PID Logic Operation
• 10/100/1000 Mbit/s Ethernet Port
• 4 Serial Ports (RS-232/RS-485)


Introduction

UA-5200 Series is a series of IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/ RTU/ASCII, MQTT, and EtherNet/IP communication protocols. IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services (Support to execute OPC UA and MQTT communication at the same time). Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database, and save to the local file as the historical records. UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive first-hand notification messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.


Specifications

Data Logger

Local Data Logger: Record I/O data, and save to the local MicroSD card in CSV format.
Remote Database:
· Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB.
· Recommend to keep only one database connected.


Software

OS: Linux Kernel 3.2.14
Protocol:
· OPC UA Server
· MQTT Broker
· MQTT Client
· Modbus TCP Master
· Modbus RTU/ASCII Master
· EtherNet/IP Scanner
Service: SFTP server, Web server, SSH
Function: PID Function
IoT Service Integration:
· Microsoft Azure
· Amazon Web Services
· IBM Bluemix
· IFTTT


Main Unit

CPU: ARM CPU, 1.0 GHz
System Memory: · DDR3 SDRAM 512 MB
Storage:
· Flash eMMC 8 GB
· microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
Non-Volatile Memory: · FRAM 64 KB
Real Time Clock: Provide second, minute, hour, date, day of week, month, year


Display

Signal: VGA (Analog RGB), reserved


LED Indicators

Status: 1 x PWR/RUN
2 x User Defined LEDs


COM Ports

Ports:
1 x RS-232 (console)
1 x RS-232
2 x RS-485 (2500VDC Isolated)


HMI

Rotary Switch: 1 x 10 Position (0 ~ 9)
Ethernet:
Ports: 1 x RJ-45, 10/100/1000Base-TX


USB

Connector: 1 x 2.0 host


Power

Input Range: +12 ~ +48 VDC
Consumption: 4.8 W


Mechanical

Casing: Metal
Dimensions (mm): 117 x 126 x 58 (W x L x H)
Installation: DIN-Rail


Environment

Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +80°C
Humidity: 10 ~ 90% RH, non-condensing
