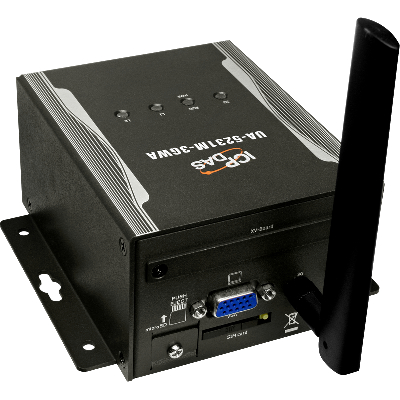

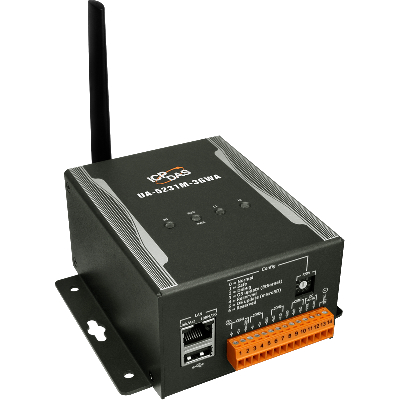

UA-5231M-3GWA CR
IIoT Communication Server with 1 Ethernet Port, 3G Wireless Communication (Metal Case)
- OPC UA Server and MQTT Client Service
- MQTT Broker Inside
- ARM CPU, 1.0 GHz
- 512 MB RAM and 512 MB Flash
- Linux kernel 3.2.14 OS
- Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- Support Redundancy (OPC UA) and PID
- 10/100/1000 Mbit/s Ethernet Port
- 4 Serial Ports (RS-232/RS-485)
- Wide Operating Temperature Range: -25 ~ +75°C
INTRODUCTION
The UA-5200 series is an IIoT communication server (IIoT: Industrial Internet of Things) with the data acquisition and control functions by ICP DAS. It has built-in OPC UA server, MQTT broker and client driver to meet the need to connect to the MES, ERP, SCADA and cloud service. And with the Ethernet, RS-232, RS-485 interfaces and Modbus TCP/RTU/ ASCII protocol, the UA-5200 series can access regular remote I/O modules or controllers that already widely used in the
factory. With the UA-5200 series, it becomes very easy to make things used in the factory connect to MES, ERP, SCADA and cloud.
Applying the OPC UA, the UA-5200 can integrate the I/O products and the third-party devices, import their data to the back-end SCADA management system or the big-data analysis/decision system, to satisfy the reliability, interoperability and security needs of the Industrial 4.0 automation system. Using the MQTT active communications to bridge the Internet of Things (IoT) and transmit the statuses of various devices by the cloud-based interaction so that to meet the
current trend of the IIoT and achieve the full smart automation system based on Industry 4.0.
SPECIFICATIONS
System Software
OS: Linux Kernel 3.2.14
Embedded Service: SFTP server, Web server, SSH
CPU Module
CPU: ARM CPU, 1.0 GHz
DDR3 SDRAM: 512 MB
Flash: 512 MB
FRAM: 64 KB
Expansion Flash Memory: microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial: Yes, for Software Copy Protection
Dual Watchdog Timers: Yes
LED Indicators: 4 LEDs (Power, Running and 2 user defined LEDs)
Rotary Switch: Yes (0 ~ 9)
VGA & Communication Ports
VGA & Communication: Yes, resolution: 640 × 480, 800 × 600, 1024 × 768, 1280 x 720
Ethernet: RJ-45 x 1, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host): 1
Console Port: RS-232 (RxD, TxD and GND); Non-isolated
ttyO2: RS-485 (Data+, Data-); Non-isolated
ttyO4: RS-232 (RxD, TxD and GND); Non-isolated
ttyO5: RS-485 (Data+, Data-); 2500 VDC isolated
Mechanical
Dimensions (W x L x H): 117 mm x 126 mm x 58 mm
Installation: DIN-Rail
Environmental
Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +80°C
Ambient Relative: 10 ~ 90% RH (non-condensing)
Power
Input Range: +12 ~ +48 VDC
Consumption: 6.5 W
GSM System
Frequency Band: GSM: 850/900/1800/1900 MHz
GPRS Connectivity: GPRS class 12/10;
GPRS station class B
Data Transmission: Downlink transfer: Max. 85.6 kbps;
Uplink transfer: Max. 42.8 kbps
3G System
Frequency Band: 3GWA: WCDMA 850/900/1900/2100 MHz
4GE: WCDMA 850/900/2100 MHz
4GC: WCDMA 900/2100 MHz, TD-SCDMA 1900/2100 MHz,
CDMA2000 (BC0) 800 MHz
Data Transmission: WCDMA / HSPA+,
Download: Max. 14.4 Mbps; Upload: Max. 5.76 Mbps
4G System
Frequency Band: 4GE: FDD LTE: B1/B3/B5/B7/B8/B20
4GC: FDD LTE: B1/B3/B8 ; TDD LTE: B38/B39/B40/B41
