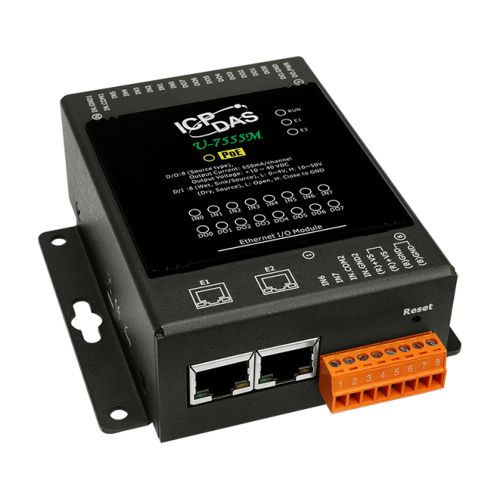

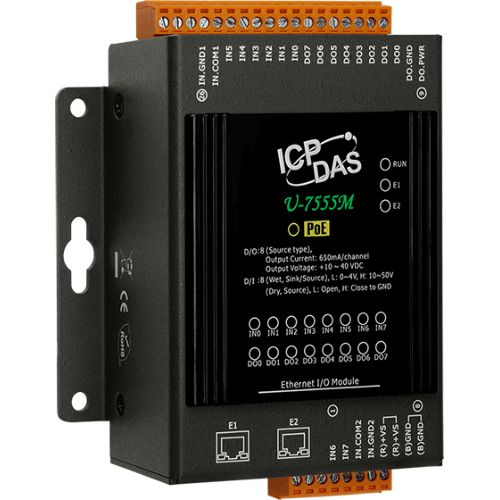

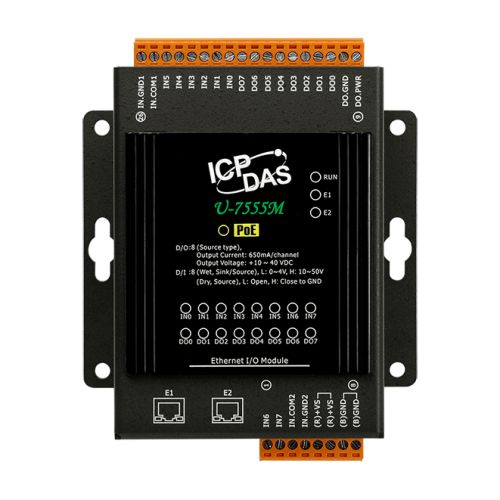

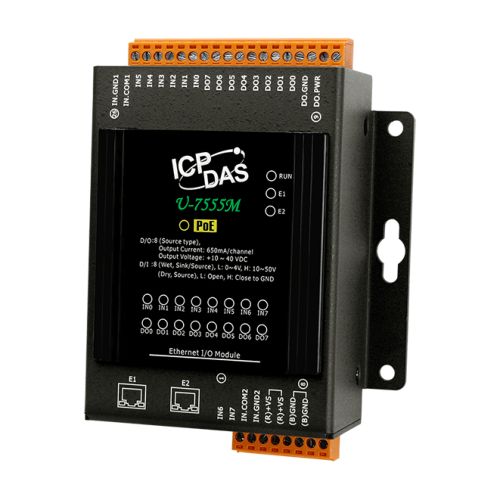

U-7555M CR ICP DAS Digital IO Modules

Support OPC UA Server and MQTT Client Protocol

Support RESTful API via HTTP and HTTPS

Support to Execute OPC UA, MQTT and RESTful API Simultaneously

Support Logic Function Rule Setting: IF, THEN, ELSE

Support Schedule: to Execute the Set Rules at a Specific Time.

Support Event Log: Record the I/O Change for Device Tracking

Built-in Web Server to Provide the Web User Interface

Built-in I/O Channels (8 x DI and 8 x DO)

Dual-port Ethernet Switch for Daisy-Chain Topology

IEEE 802.3af-compliant Power over Ethernet (PoE)



U-7555M is an OPC UA I/O module that provides 8 digital input channels and 8 digital output channels. It has a built-in dual-port Ethernet switch to implement daisy-chain topology. The cabling is much easy and can reduce the total cable and switch cost. U-7555M follows IEEE 802.3af (Class 2) compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater flexibility and efficiency to simplify system design, save space, and reduce wirings and power sockets. It provides a Web UI to confi gure/control/monitor the modules, connections, and I/O status via a web browser. It is easy, fast, and no extra APP needed.



In industrial communication, UA I/O provides OPC UA Server, MQTT Client and RESTful API protocols (can execute all communications at the same time.). Users can choose the networking mode according to their cases. And to transmit the values of the built-in I/O channels to the Cloud IT system or field control system for reading and writing. Support logic function Rule Setting IF, THEN, ELSE, can set up logical condition/action for I/O and virtual point; Provide schedule function to execute the set rules at a specifi c time; support RESTful API function, can read/write I/O and virtual point through HTTP or HTTPS.



CPU: 32-bit CPU (400 MHz)



Intra-module Isolation: 2500 VDC



EFT (IEC 61000-4-4): ±2 kV for Power Line

ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point

Surge (IEC 61000-4-5): ±2 kV for Power Line



Status: 1 x PoE Power

1 x System Running

1 x Ethernet Link/Act

16 x I/O Channel Status



Channels: 8

Type: Dry + Wet Contact

Sink/Source (NPN/PNP): Dry: Source

Wet: Sink/Source

ON Voltage Level: Dry: Close to GND

Wet: +10 VDC ~ +50 VDC

OFF Voltage Level: Dry: Open

Wet: +4 VDC Max.

Max. Counts: 16-bit (65535)

Frequency: 50 Hz

Min. Pulse Width: 10 ms

Effective Distance: 500 M Max.

Input Impedance: 10 kΩ

Overvoltage Protection: +70 VDC



Channels: 8

Type: Isolated Open Collector

Sink/Source (NPN/PNP): Source

Load Voltage: +10 VDC ~ +40 VDC

Load Current: 650 mA/Channel at 25°C

Overvoltage Protection: 47 VDC

Short-circuit Protection: Yes



Ports: RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)

PoE: Yes



Reverse Polarity Protection: Yes

Input Range: 12 ~ 48 VDC

Consumption: 3.7 W

Powered from PoE: Yes, IEEE 802.3af, Class 2

Powered from Terminal Block: Yes, 12 ~ 48 VDC



Dimensions (mm): 97 x 120 x 42 (W x L x H)

Installation: Wall Mounting



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
