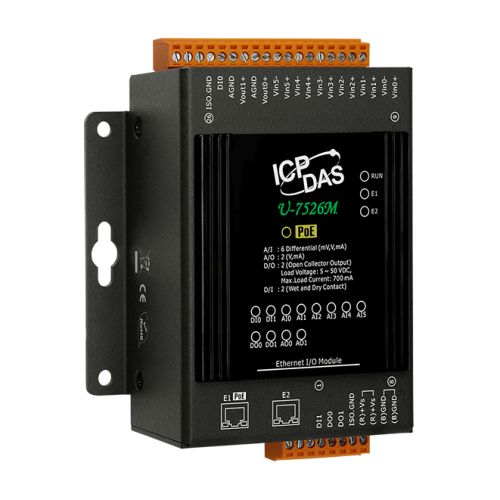

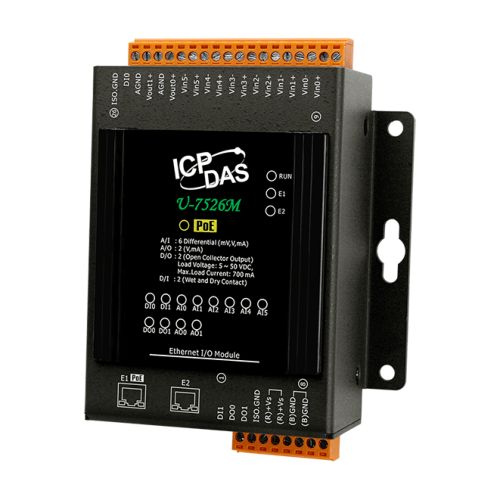

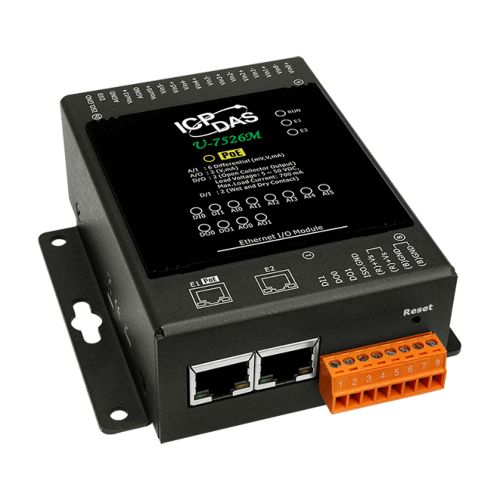

U-7526M CR ICP DAS Analog IO Modules

Support OPC UA Server and MQTT Client Protocol

Support RESTful API via HTTP and HTTPS

Support to Execute OPC UA, MQTT and RESTful API Simultaneously

Support Scaling For Analog Signal Converting

Support Logic Function Rule Setting: IF, THEN, ELSE

Support Schedule: to Execute the Set Rules at a Specific Time.

Support Event Log: Record the I/O Change for Device Tracking

Built-in Web Server to Provide the Web User Interface

Built-in I/O Channels (6 x AI, 2 x AO, 2 x DI, and 2 x DO)

Dual-port Ethernet Switch for Daisy-Chain Topology

IEEE 802.3af-compliant Power over Ethernet (PoE)



U-7526M is a UA I/O module that provides 2 digital input channels, 2 digital output channels, 6  analog input channels and 2 analog output. It has a built-in dual-port Ethernet switch to implement daisy-chain topology. The  cabling is much easy and can reduce the total cable and switch cost. U-7526M follows IEEE 802.3af (Class 2) compliant  Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater flexibility and efficiency to simplify system design, save space, and reduce wirings and power sockets. It provides a Web UI to configure/control/monitor the modules, connections, and I/O status via a web browser. It is easy, fast, and no extra APP needed.



In industrial communication, UA I/O provides OPC UA Server, MQTT Client and RESTful API protocols (can execute all communications at the same time.). Users can choose the networking mode according to their cases. And to transmit the values of the built-in I/O channels to the Cloud IT system or field control system for reading and writing. Support Scaling. Let the analog signal be converted into a more readable value. Support logic function Rule Setting IF, THEN, ELSE, can set up logical condition/action for I/O and virtual point; Provide schedule function to execute the set rules at a specifi c time; support RESTful API function, can read/write I/O and virtual point through HTTP or HTTPS.



CPU: 32-bit CPU (400 MHz)



Intra-module Isolation: 2500 VDC



EFT (IEC 61000-4-4): ±2 kV for Power Line

ESD (IEC 61000-4-2): ±4 kV Contact for each terminal and ±8 kV Air for random point

Surge (IEC 61000-4-5): ±2 kV for Power Line



Status: 1 x PoE Power

1 x System Running

1 x Ethernet Link/Act

12 x I/O Channel Status



Channels: 6 (Differential)

Type: ±500 mV, ±1 V, ±5 V, ±10 V,

±20 mA, 0 ~ 20 mA, 4 ~ 20 mA

(Jumper Selectable)

Resolution: 16-bit

Accuracy: ±0.1%

Sampling Rate: 10 Sample/Sec. (Total)

Input Impedance: Voltage: 2 MΩ

Current: 125 Ω

Common Mode Rejection: 86 dB Min.

Normal Mode Rejection: 100 dB

Common Voltage Protection: ±200 VDC

Overvoltage Protection: 240 Vrms

Overcurrent Protection: Yes, 50 mA Max. at 110 VDC/VAC Max

Individual Channel Configuration: Yes

Channel-to-Channel Isolation: Yes, ±400 VDC

Open Wire Detection: Yes, for 4 ~ 20 mA only

Zero Drift: ±20 μV/°C

Span Drift: ±25 ppm/°C



Channels: 2

Type: 0 ~ 5 VDC, ± 5 VDC, 0 ~ 10 VDC, ± 10 VDC

0 ~ 20 mA, 4 ~ 20 mA

(Jumper Selectable)

Resolution: 12-bit

Accuracy: ±0.1% of FSR

Open Wire Detection: Yes, for 4 ~ 20 mA only

Voltage Output Capability: 20 mA @ 10 V

Current Load Resistance: 500 Ω



Channels: 2

Type: Dry + Wet Contact

Sink/Source (NPN/PNP): Dry: Source

Wet: Sink/Source

ON Voltage Level: Dry: Close to GND

Wet: +1 VDC Max.

OFF Voltage Level: Dry: Open

Wet: +3.5 VDC ~ + 30 VDC

Max. Counts: 16-bit (65535)

Frequency: 50 Hz

Min. Pulse Width: 10 ms

Effective Distance: 500M Max.

Overvoltage Protection: +30 VDC



Channels: 2

Type: Isolated Open Collector

Sink/Source (NPN/PNP): Sink

Load Voltage: +5 VDC ~ +50 VDC

Load Current: 700 mA/Channel

Overvoltage Protection: 60 VDC

Overload Protection: 1.4 A

Short-circuit Protection: Yes



Ports: RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)

PoE: Yes



Reverse Polarity Protection: Yes

Input Range: 12 ~ 48 VDC

Consumption: 4.4 W

Powered from PoE: Yes, IEEE 802.3af, Class 2

Powered from Terminal Block: Yes, 12 ~ 48 VDC



Dimensions (mm): 97 x 120 x 42 (W x L x H)

Installation: Wall Mounting



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -30 ~ +80 °C

Humidity: 10 ~ 90% RH, Non-condensing
