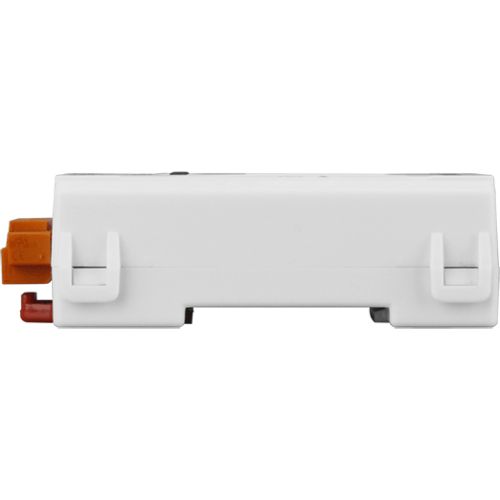

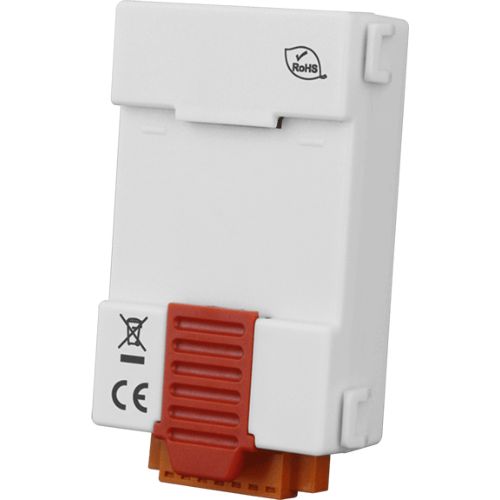

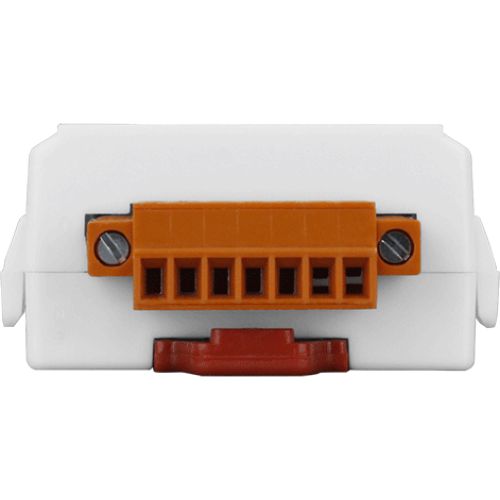

tSG-3781B CR ICP DAS signal conditioner

Introduction

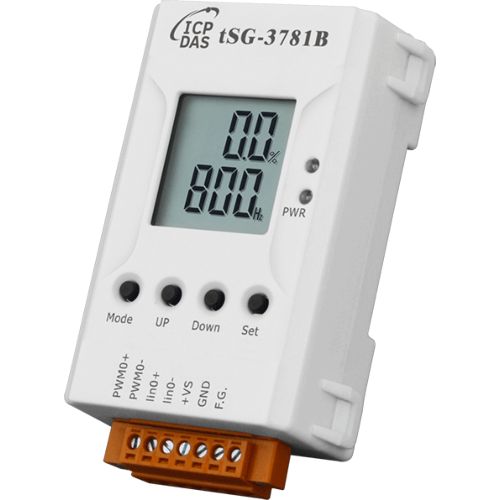

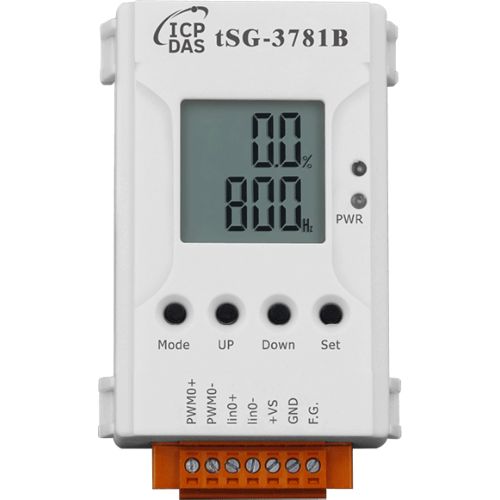

The tSG-3781B is a single-channel DC current input signal conditioning module that converts 4~20mA current input to PWM output. PWM output has a duty cycle of 0%~100% and performs a linear conversion of the 4~20mA current input. PWM output frequency is adjustable from 600Hz to 800Hz via push buttons. tSG-3781B includes a monochrome LCD display that shows the duty cycle and frequency of the PWM output signal.

Features

• Convert 1-channel 4 ~ 20mA Current Input to 1-channel PWM Output
• PWM output duty ratio converted by 4 ~ 20 mA Input
• PWM output frequency configured via push buttons
• LCD displays the PWM output duty ratio and frequency

Applications

• Heating system in buildings
• Ventilation system
• Controlling servo-assisted diaphragm valve
