TPD-703-64 CR ICP DAS TouchPAD

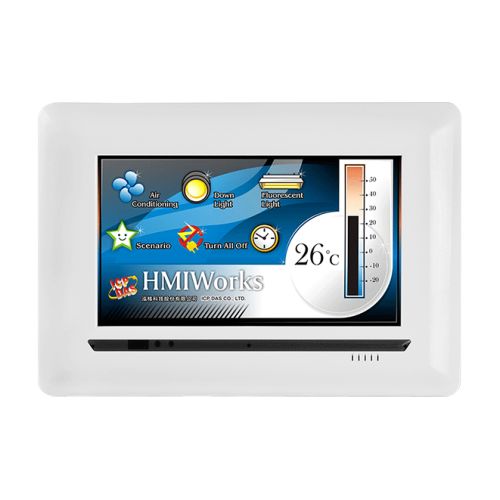

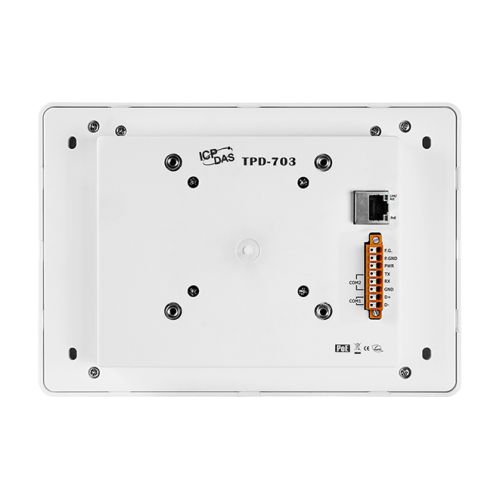

TPD 7 inch series is a series of touch HMI designed for building and home automation with high resolution TFT color touch screen. The TPD-703 expands its memory to 16 MB SDRAM and 16 MB Flash, while the TPD-703-64 expands its memory to 64 MB SDRAM and 64 MB Flash. Besides, TPD-703/703-64 provides 1 RS-232 port, 1 RS-485 port, Power over Ethernet (PoE) and real time clock (RTC), etc. Meantime, it can be seamlessly integrated with all kinds of I/O modules and can present beautiful, flexible and user-defined picture frame. TPD-703/703-64 offers a way to upgrade mechanical switches into intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer.
TPD-703-64 CR: 7” Touch HMI device with RS-232 (3-pin, Non-isolation), RS-485 (including Self-Tuner, Non-isolation), RTC, Ethernet, PoE (RoHS)

• Excellent C/P ratio (cost/performance)
• High-resolution color touch screen
• PoE (Power over Ethernet)
• RTC (Real Time Clock)
• Free HMIWorks development tool
• Supports C programming language and Ladder Designer
• Supports the custom communication protocol (C language)
• Modbus TCP/RTU protocol

CPU Module

CPU: 32-bit RISC CPU
Memory Expansion: 64 MB SDRAM/64 MB Flash
Real Time Clock (RTC): Yes
Buzzer: Yes
Rotary Switch (0~9): Yes

Communication Interface

Serial Port:

• COM1: RS-485 (including Self-Tuner) ; Non-isolation
• COM2: RS-232 (3-pin) ; Non-isolation

Ethernet: RJ-45 x 1, 10/100 Base-TX

MMI (Main Machine Interface)

LCD: 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3
Backlight Life: 20,000 hours
Brightness: 400 cd/m2
Touch Panel: 4-wire, analog resistive; Light Transmission: 80%
Reset Button: Yes

Electrical

Powered from Terminal Block: +12 ~ 48 VDC
Powered from PoE: IEEE 802.3af, Class1 (48 V)
Power Consumption: 3.6 W

Mechanical

Dimensions (W x L x H): 217 mm x 153 mm x 33 mm
Installation: Wall Mount
Ingress Protection: Front Panel: IP40

Environmental

Operating Temperature: -10 ~ +60°C
Storage Temperature: -20 ~ +70°C
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
