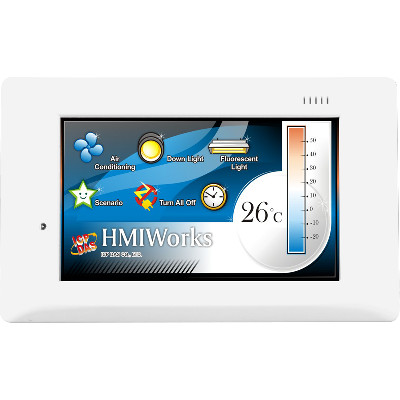

TPD-433F-H CR
4.3 Touch HMI Device with 1 x RS-485, 1 x RS-232, Ethernet (PoE), RTC and USB Download Port
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- Multiple serial communication interfaces
- RTC (Real Time Clock)
- GUI design
- Free HMIWorks development tool
- Supports C language and Lader Designer
- Modbus TCP, Modbus RTU and DCON protocol
- ESD Protection: 4 kV
- Operating temperature: -20 ~ 50°C
- Supports user-defined third party protocol (C language)
INTRODUCTION
TPD-43xF-H is a series of touch HMI and designed for building and home automation. TPD 4.3 inch series is equipped with high resolution TFT color touch screen seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. It supports Modbus TCP/RTU protocols so that it enables remote control of I/O modules and integration with SCADA software. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
SPECIFICATIONS
CPU Module
CPU: 32-bit RISC CPU
Memory Expansion: 16 MB SDRAM / 16 MB Flash
Real Time Clock (RTC): Yes
Buzzer: Yes
Rotary Switch (0~9): Yes

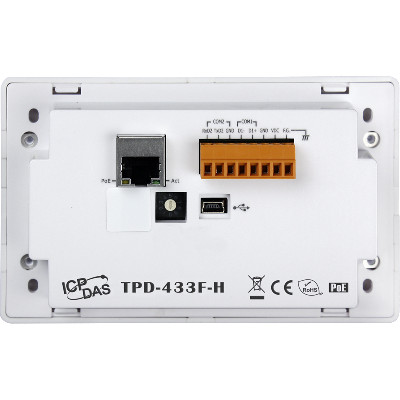

Communication Interface
COM1: RS-485 (including Self-Tuner)
COM2: RS-232 (3-pin)
Ethernet: RJ-45 x 1, 10/100 Base-TX
USB 1.1 Client: Firmware updates only
MMI (Main Machine Interface)
LCD: 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life: 20,000 hours
Brightness: 400 cd/m2
Touch Panel: Yes
LED Indicator: Yes
Reset Button: Yes
Electrical
Powered from Terminal Block: +12 ~ 48 VDC
Powered from PoE: IEEE 802.3af, Class1 (48 V)
Power Consumption: 2.5 W
Mechanical
Dimensions (W x L x H): 140 mm x 87 mm x 42mm
Installation: Wall Mount
Ingress Protection: Front Panel: IP40
Environmental
Operating Temperature: -30 ~ +50°C
Storage Temperature: -30 ~ +80 °C
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
