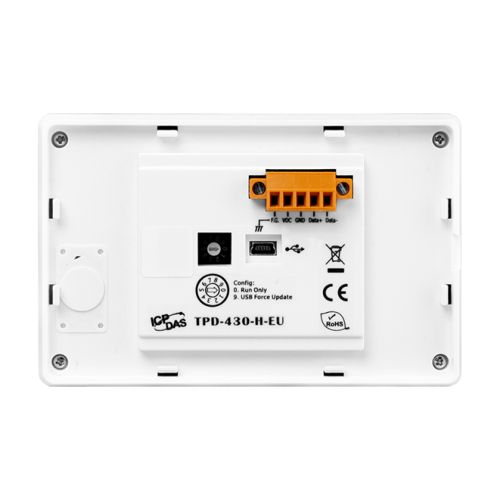

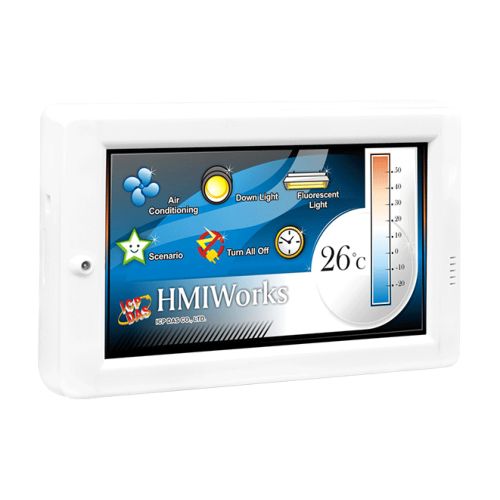

TPD-430-H-EU CR
4.3 Touch HMI Device with 1 x RS-485, RTC and USB Download Port, Suitable for the European 86 x 86 mm Outlet Box
- PoE (Power over Ethernet)
- Modbus TCP, Modbus RTU and DCON protocol
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RS-485 (including Self-Tuner)
- RTC (Real Time Clock)
- Buzzer
- Free HMIWorks development tool
- Supports C language and Lader Designer
- ESD Protection: 4 kV
- Operating temperature: -20 ~ 50°C
- Supports user-defined third party protocol (C language)
INTRODUCTION
TPD-43x-H/TPD-43x-H-EU is a series of tiny touch HMI and designed for building and home automation. TPD 4.3 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
SPECIFICATIONS
CPU Module
CPU: 32-bit RISC CPU
Memory Expansion: 16 MB SDRAM/16 MB Flash
Real Time Clock (RTC): Yes
Buzzer: Yes
Rotary Switch (0~9): Yes
Communication Interface
Serial Port: RS-485 (including Self-Tuner)
Ethernet: -
USB 1.1 Client: Firmware updates only
MMI (Main Machine Interface)
LCD: 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life: 20,000 hours
Brightness: 400 cd/m2
Touch Panel: Yes
LED Indicator: Yes
Reset Button: Yes
Electrical
Powered from Terminal Block: +12 ~ 48 VDC
Powered from PoE: -
Power Consumption: 2.5 W
Mechanical
Dimensions (W x L x H): 126 mm x 92 mm x 29 mm
Installation: Wall Mount (Suitable for the European 86mm x 86mm outlet box)
Environmental
Operating Temperature: -20 ~ +50°C
Storage Temperature: -30 ~ +80 °C
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
