TPD-280-H CR ICP DAS TouchPAD

TPD-280-H CR ICP DAS

TPD-280-H CR ICP DAS

TPD-280-H CR

2.8 Touch HMI Device with 1 x RS-485

Quantity:

Price

€ 161,01

(VAT excluded)

€ 196,43(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 196,43

Availability: 15 business days

SKU: 106452

Model: TPD-280-H CR

Need Help?

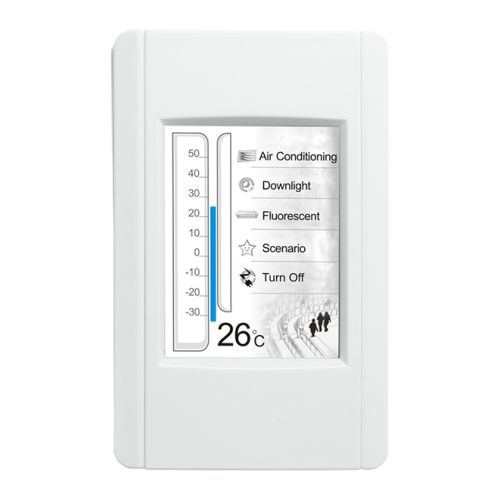

TPD 2.8 inch H series of tiny touch HMI and designed for building and home automation. TPD 2.8 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPDseries devices when using Ladder Designer. Moreover, we provide redundant solutions in our PoE version, TPD-283-H/TPD-283U-H of TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.
TPD-280-H CR: 2.8” Touch HMI device with RS-485 (RoHS)

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • RS-485 (including Self-Tuner)
  • RTC (Real Time Clock)
  • GUI design
  • Free HMIWorks development tool
  • Suppots C programming language and Ladder Designer
  • Supports the custom communication protocol (C language)
  • Modbus TCP/RTU protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ 70°C

CPU Module

CPU: 32-bit RISC CPU
Memory Expansion: -
Real Time Clock (RTC): -
Buzzer: Yes
Rotary Switch (0~9): Yes

Communication Interface

Serial Port

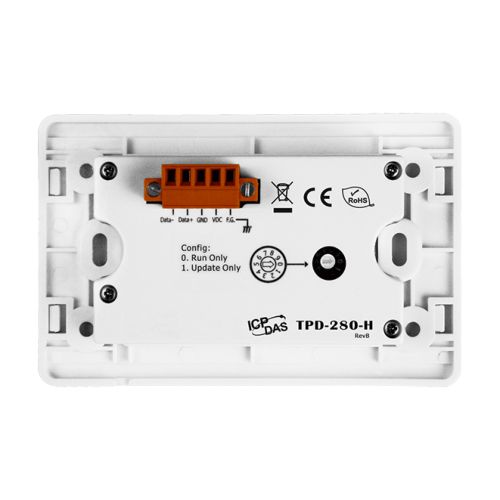

COM1: RS-485 (including Self-Tuner)
COM2: -
Ethernet: -

Firmware Update

Ethernet: -
USB Client 1.1: -
RS-485: Yes

MMI (Main Machine Interface)

LCD: 2.8” TFT (Resolution 240 x 320 , 65535 colors), defective pixels <= 3
Backlight Life: 20,000 hours
Brightness: 160 cd/m2
Touch Panel: Resistive Touch
Reset Button: Yes

Electrical

Powered from Terminal Block: +12 ~ 48 VDC
Powered from PoE: -
Power Consumption: 1.5 W

Mechanical

Dimensions (W x L x H): 127 mm x 92 mm x 21.8 mm 127 mm x 92 mm x 31 mm
Installation: Wall Mount
Ingress Protection: Front Panel: IP40

Environmental

Operating Temperature: -20 ~ +70°C
Storage Temperature: -30 ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
