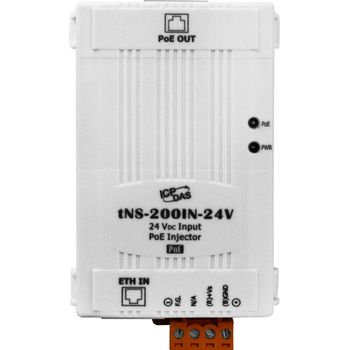

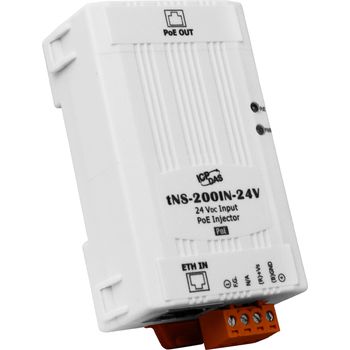

tNS-200IN-24V CR
10/100 Base-TX, PoE injector for 1 PoE port (uses spare pairs), +24 VDC input, PoE 15.4W
- Auto-detection of PD (powered devices)
- Power Sourcing Equipment (PSE) operation
- Over-temperature, over-current and over/under-voltage detection
- Supplies up to 15.4 watts
- No user settings
- Tiny packaging fits on your DIN-Rail
- Cost-effective for tNS-200IN
The tNS-200IN/tNS-200IN-24V single port PoE Injector supports PoE powered devices in industrial environments. The tNS-200IN/tNS-200IN-24V delivers both data and power over a single standard Ethernet cable to a PoE powered device designed to receive both data and power through its RJ-45 port connector. The tNS-200IN-24V is designed with +24 VDC to +48 VDC boost for PoE application where 48 VDC power supply is not available.
Interface

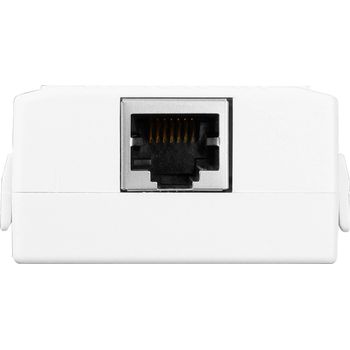

RJ45 ports: 1 for Ethernet in, 1 for PoE out
LED Indicators: Power, Power Device is detected
Power Input
Input Voltage for tNS-200IN: +46 ~ +53 VDC
Input Voltage for tNS-200IN-24V: +18 ~ +32 VDC
Power consumption for tNS-200IN:
0.4 A@ 48 VDC with PD full loading
Power consumption for tNS-200IN-24V:
0.9 A@ 24 VDC with PD full loading
Protection: Power reverse polarity protection
Frame Ground for EMS Protection: Yes

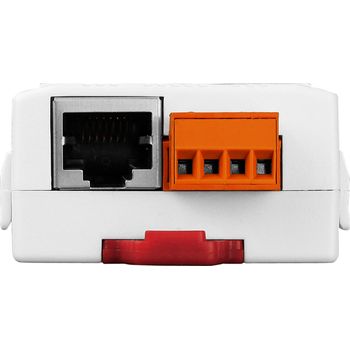

Connection: 4-Pin Removable Terminal Block
PoE Technology
PoE Compliance: 100% IEEE 802.3af compliant
PoE Classification: PSE (Power Sourcing Equipment)
PoE Voltage: +46 ~ +48 VDC depending on power input
PoE Power: Up to 15.4 watts
PoE Operation: Automatic detection and power management
PoE Pin assignments: V+ (Pin 4,5), V- (Pin 7,8)
PoE disconnect mode: DC disconnect
Mechanical
Casing: Plastic
Flammability: UL 94V-0
Dimensions: 52 mm x 86 mm x 27 mm (W x L x H)

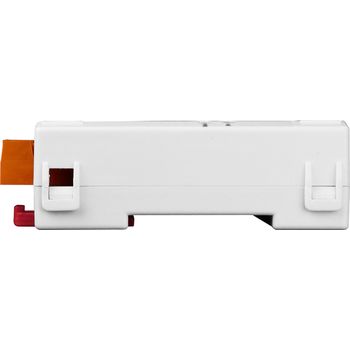

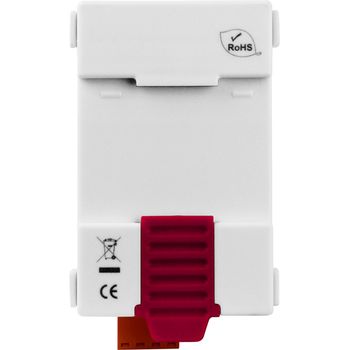

Installation: DIN-Rail
Environmental
Operating Temperature: -40 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
