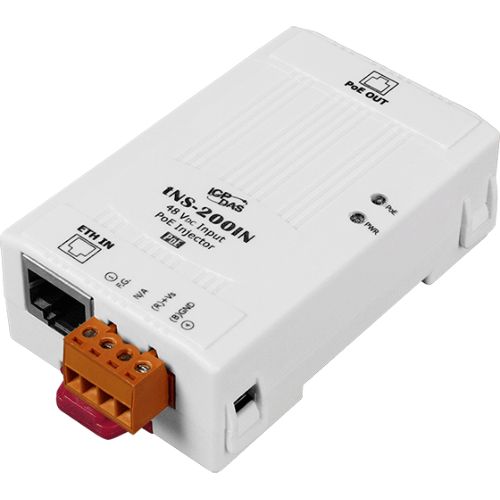

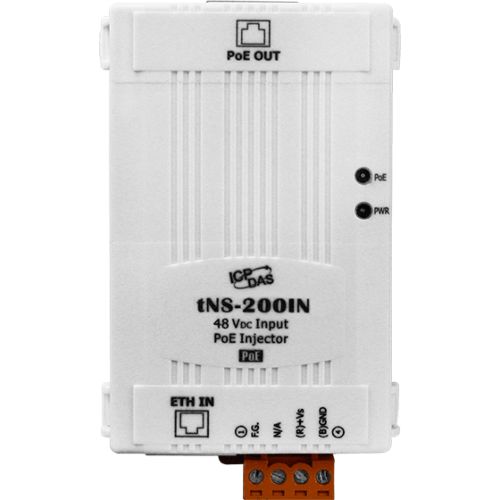

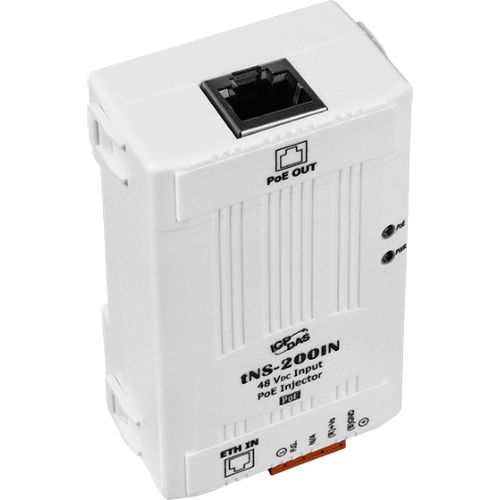

tNS-200GIN CR, 10/100/1000 Base-TX, PoE injector for 1 PoE port (uses spare pairs), +48 VDC input, PoE 30W
tNS-200GIN CR
10/100/1000 Base-TX, PoE injector for 1 PoE port (uses spare pairs), +48 VDC input, PoE 30W
Free Shipping
Features
Auto-detection of PD (powered devices)
Over-temperature, over-current and over/under-voltage detection
No user settings
Power Sourcing Equipment (PSE) operation
tNS-200GIN supplies up to 30W
Tiny packaging fi ts on your DIN-Rail Mounting
+46 ~ +53 VDC power input
Introduction
The tNS-200GIN Single Port PoE Injector supports PoE powered devices in industrial environments. The tNS-200GIN delivers both data and power over a single standard Ethernet cable to a PoE Powered Device designed to receive both Data and Power through its RJ-45 port connector.
Specifications
LED Indicators
Status: Power, Power Device is detected
Ethernet
Ports: 1 x RJ-45 in,
1 x PoE out,
10/100/1000Base-T(X)
PoE Technology
PoE Compliance: 100% IEEE 802.3at compliant
PoE Power: Up to 30 W
PoE Operation: Automatic detection and power management
PoE Pin Assignments: V+ (Pin 4,5), V- (Pin 7,8)
PoE Disconnect Mode: DC disconnect
PoE Voltage: +48 VDC depending on power input
Power
Reverse Polarity Protection: Yes
Input Range: +46 ~ +53 VDC
Consumption: 0.7 A@ 48 VDC with PD full loading
Mechanical
Casing: Plastic
Dimensions (mm): 52 x 86 x 27 (W x L x H)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -40 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Humidity: 10% ~ 90% RH, non-condensing
