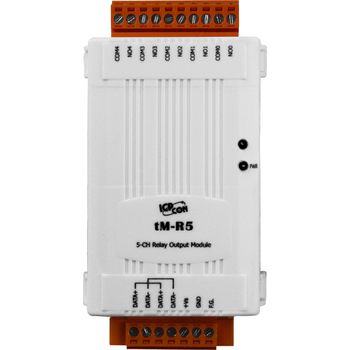

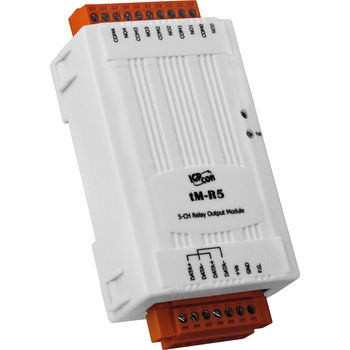

tM-R5 CR
5-channel Power Relay Module
- Relay Outputs
- Dual Watchdog
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Cost-effective
- Wide Operating Temperature Range: -25 ~ +75°C
INTRODUCTION
The tM-R5 provides 5 channels for relay output. All output channels are Form A type relays and there are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
APPLICATIONS
- All Types of On/Off Control
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor Fabrication
- Control Systems
I/O SPECIFICATIONS
Relay Output
Output Channel: 5
Type: Power Relay, Form A (SPST N.O.)
Operating Voltage: 250 VAC or 30 VDC
Max. Load Current: 5 A
Operating Time: 6 ms
Release Time: 3 ms
Electrical Life (Resistive load): VDE: 5 A @250 VAC 30,000 ops (10 ops/minute) at 75XC
5 A @30 VDC 70,000 ops (10 ops/minute) at 75XC
UL: 5 A @250 VAC/30 VDC 6,000 ops
3 A @250 VAC/30 VDC 100,000 ops
Mechanical Life: 20,000,000 ops at no load (300 ops/minute)
Power-on Value: Yes, Programmable
Safe Valu: Yes, Programmable
SYSTEM SPECIFICATIONS
Communication
Interface: RS-485
Format: (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Protocol: DCON, Modbus/RTU, Modbus/ASCII
Dual Watchdog: Yes, Module (2.3 seconds), Communication (Programmable)
LED Indicators
Power: 1 LED as Power Indicator
Isolation
Intra-module Isolation,Field-to-Logic: 3750 VDC
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power
Power Requirements
Reverse Polarity Protection: Yes
Powered from Terminal Block: Yes, 10 ~ 30 VDC
Consumption: 1.0 W Max.
Mechanical
Dimensions (W x L x H): 52 mm x 98 mm x 27 mm
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +75 °C
Humidity: 10 ~ 95% RH, Non-condensing
