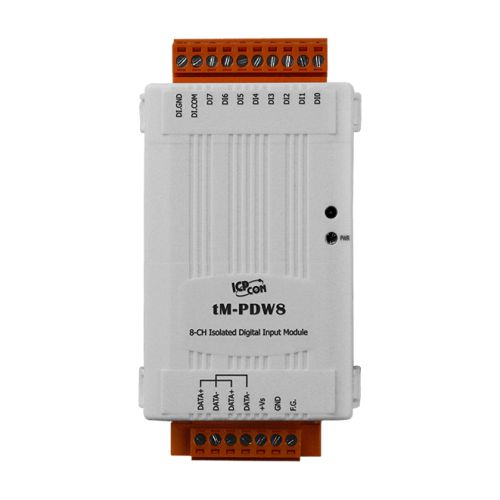

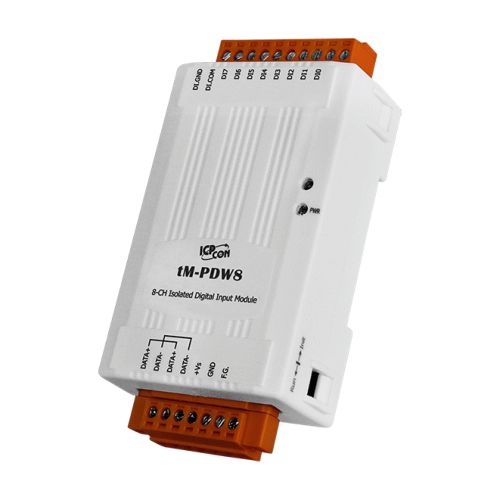

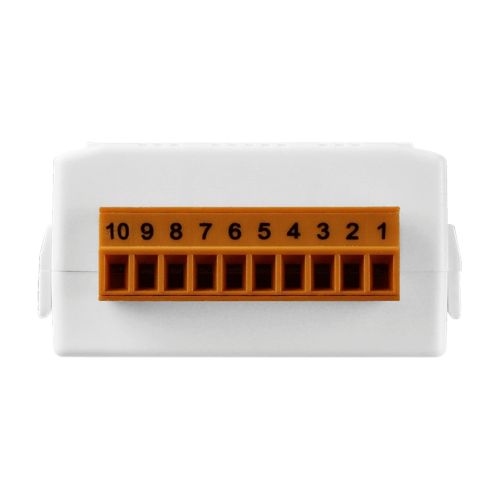

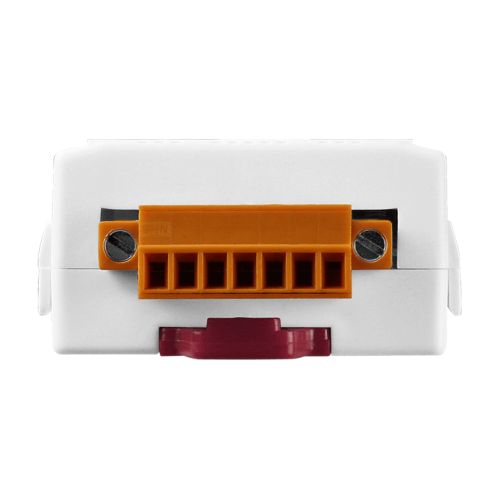

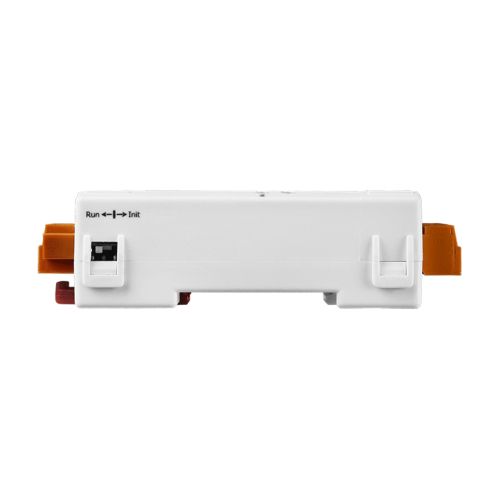

tM-PDW8 CR ICP DAS Digital IO Modules



The tM-P8 off ers 8 channels for digital input, each of which features photocoupler isolation. In addition, digital input can be either sinkor source-type using wire connections and all channels can be used as 16-bit counters. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The tM-PDW8 off ers 8 channels for digital input, catering for both dry and wet contact, with an eff ective distance for dry contact of up to 500 meters. All channels not only feature Photocoupler isolation, but can also be used as 16-bit counters. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.



All Types of On/Off Control

Industrial Automation

Industrial Machinery

Building Automation

Food and Beverage Systems

Semiconductor Fabrication

Control Systems



Watchdog Timer: Yes, Module (2.3 seconds), Communication (Programmable)



Intra-module Isolation: 3750 VDC



EFT (IEC 61000-4-4): ±4 kV for Power

ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal

±8 kV Air for Random Point



Status: 1 x Power and Communication



Channels: 8

Type: Dry Contact,

Wet Contact

Sink/Source (NPN/PNP): Dry: Source

Wet: Sink/Source

ON Voltage Level: Dry: Close to GND

Wet: +3.5 VDC ~ +50 VDC

OFF Voltage Level: Dry: Open

Wet: +1 VDC Max.

Max. Counts: 65535 (16-bit)

Frequency: 100 Hz

Min. Pulse Width: 5 ms

Input Impedance: 10 KΩ, 0.5 W

Overvoltage Protection: ±70 VDC



Ports: 1 x RS-485

Baud Rate: 1200 ~ 115200 bps

Data Format: (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)

Protocol: DCON, Modbus/RTU, Modbus/ASCII



Reverse Polarity Protection: Yes

Consumption: 0.43 W Max.

Powered from Terminal Block: Yes, 10 ~ 30 VDC



Dimensions (mm): 52 x 98 x 27 (W x L x H)

Installation: DIN-Rail Mounting



Operating Temperature: -25 °C ~ +75 °C

Storage Temperature: -30 °C ~ +75 °C

Humidity: 10 ~ 95% RH, Non-condensing
