features and benefits

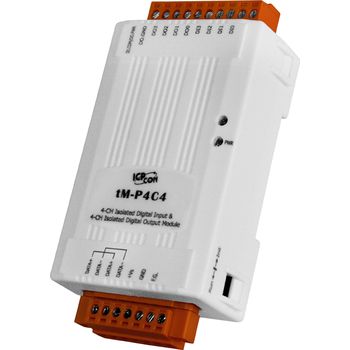

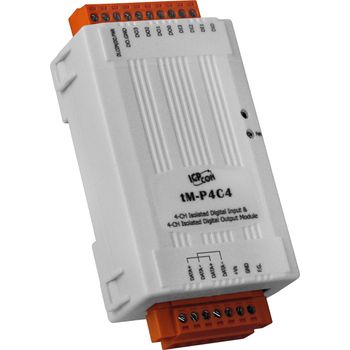

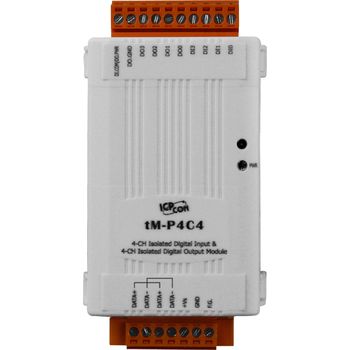

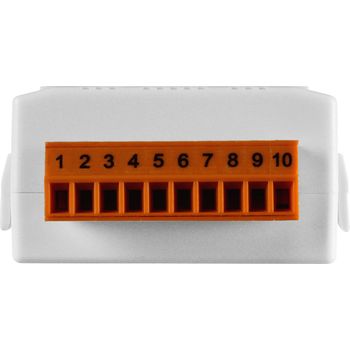

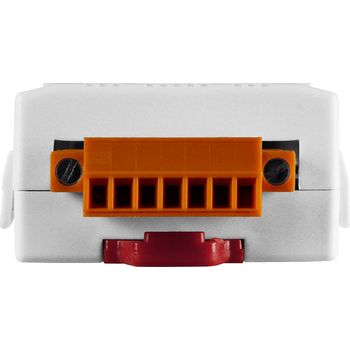

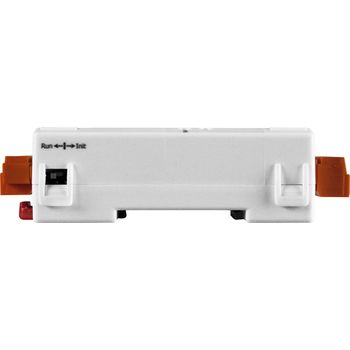

The tM-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocoupler isolation.
The tM-P4C4 supports sink-type output with short circuit protection, while the input is source-type.
All input channels can be used as 16-bit counters.
There are options for configuring power-on and safe digital output values.
4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
- 4-channel Source-type Digital Inputs
- 4-channel Sink-type Digital Outputs
- photocoupler Isolation
- All DI Channels Can Be Used As 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Digital Input/Counter| Channels | 4 |
|---|
| Type | Wet Contact |
|---|
| Sink/Source (NPN/PNP) | Source |
|---|
| ON Voltage Level | +3.5 ~ +50 VDC |
|---|
| OFF Voltage Level | +1 VDC Max. |
|---|
| Max. Counts | 65535 (16-bit) |
|---|
| Frequency | 100 Hz |
|---|
| Min. Pulse Width | 5 ms |
|---|
| Input Impedance | 10 KΩ, 0.66 W |
|---|
| Overvoltage Protection | 70 VDC |
|---|
Digital Output| Channels | 4 |
|---|
| Type | Isolated Open Collector |
|---|
| Sink/Source (NPN/PNP) | Sink |
|---|
| Load Voltage | +3.5 ~ +50 VDC |
|---|
| Load Current | 700 mA/channel |
|---|
| Overvoltage Protection | 60 VDC |
|---|
| Overload Protection | 1.3 A |
|---|
| Short-circuit Protection | Yes |
|---|
| Power on Value | Programmable |
|---|
| Safe Value | Programmable |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
|---|
| Protocol | DCON, Modbus RTU, Modbus ASCII |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Consumption | 0.5 W Max. |
|---|
| Powered from Terminal Block | 10 ~ 30 VDC |
|---|
Mechanical| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
|---|

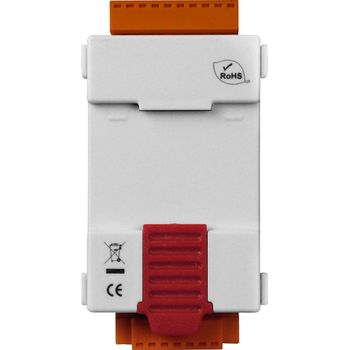

| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +75 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
