features and benefits

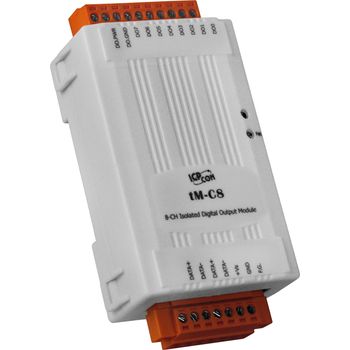

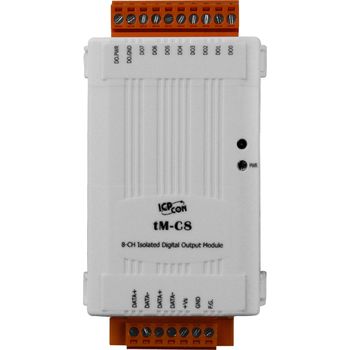

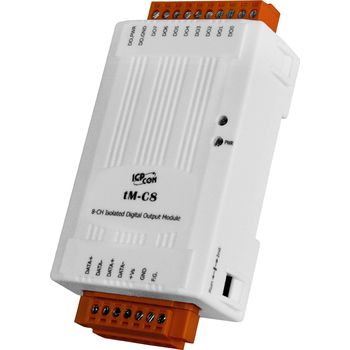

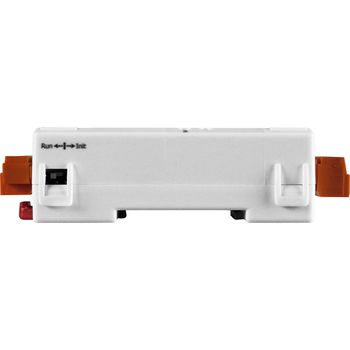

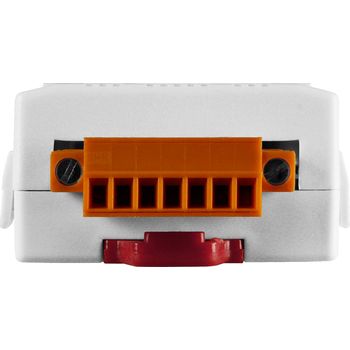

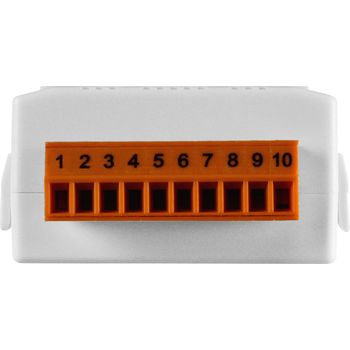

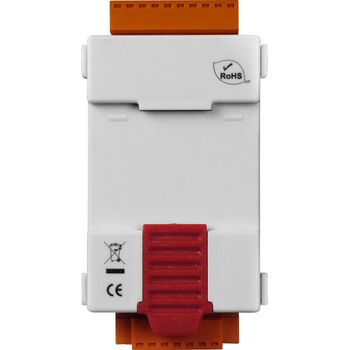

The tM-C8 provides 8 channels for digital output, each of which features photocoupler isolation.
The tM-C8 supports sink-type output with short circuit protection and there are options for configuring power-on and safe digital output values.
4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
- Sink-type Digital Outputs
- photocoupler Isolation
- Configurable Power-on Value and Safe Value Settings
- Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Digital Output| Channels | 8 |
|---|
| Type | Isolated Open Collector |
|---|
| Sink/Source (NPN/PNP) | Sink |
|---|
| Load Voltage | +3.5 ~ +50 VDC |
|---|
| Load Current | 700 mA/channel |
|---|
| Overvoltage Protection | 60 VDC |
|---|
| Overload Protection | 1.4 A |
|---|
| Short-circuit Protection | Yes |
|---|
| Power on Value | Programmable |
|---|
| Safe Value | Programmable |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
|---|
| Protocol | DCON, Modbus RTU, Modbus ASCII |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Consumption | 0.8 W Max. |
|---|
| Powered from Terminal Block | 10 ~ 30 VDC |
|---|
Mechanical| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +75 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
