features and benefits

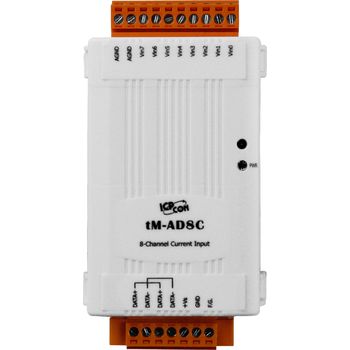

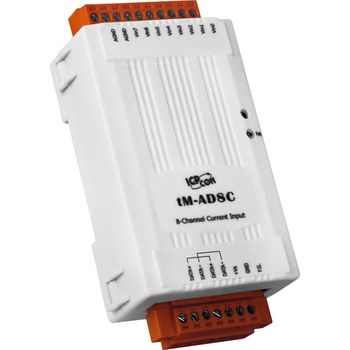

The tM-AD8C is a current input module that includes 8 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 20 mA, 4 ~ 20 mA).
The sampling rate of the tM-AD8C is adjustable and is available in either fast or normal mode.
It also provides 4 kV ESD protection as well as 2500 Vrms intra-module isolation.
- 8-channel Single-ended Inputs
- Current Inputs
- Adjustable Sampling Rate
- Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 2500 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Analog Input| Channels | 8 Single-ended |
|---|
| Type | Current |
|---|
| Range | 0 ~ 20 mA, 4 ~ 20 mA |
|---|
| Resolution | Normal Mode: 14-bit | Fast Mode: 12-bit |
|---|
| Accuracy | Normal Mode: ±0.1% | Fast Mode: ±0.5% |
|---|
| Sampling Rate | Normal Mode: 10 Hz | Fast Mode: 200 Hz |
|---|
| Input Impedance | 125 Ω |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
|---|
| Protocol | DCON, Modbus RTU, Modbus ASCII |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Consumption | 0.7 W Max. |
|---|
| Powered from Terminal Block | 10 ~ 30 VDC |
|---|
Mechanical| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +75 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
