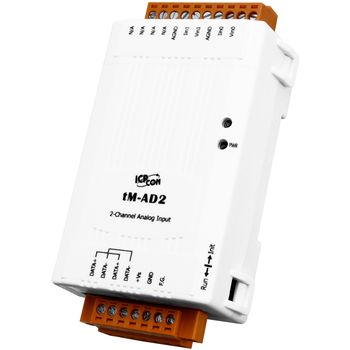

tM-AD2 CR
2-channel Isolated Analog Input Module with High Voltage Protection
The tM-AD2 is an analog input module that includes 2 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA). It provides a high overvoltage protection of 120 VDC. The sampling rate of the tM-AD2 is adjustable and is available in either fast or normal mode and It also provides 4 KV ESD protection as well as 2500 VDC intra-module isolation.
tM-AD2 CR: 2-channel Isolated Analog Input Module with High Voltage Protection(RoHS)
- 2-channel Single-ended Inputs
- Voltage Inputs and Current Inputs
- 120 VDC Overvoltage Protection
- Resolution: 14/12 bits
- Adjustable Sampling Rate
- 4 kV ESD and EFT Protecton
- 3 kV Surge Protection
- Dual Watchdog
- 2500 VDC Intra-module Isolation
- Cost-effective
- Wide Operating Temperature Range: -25 ~ +75°C
Analog Input
Input Channels: 2 Single-ended
Type: 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution
- Normal Mode: 14-bit
- Fast Mode: 12-bit
Sampling Rate
- Normal Mode: 10 Hz total
- Fast Mode: 200 Hz total
Accuracy
- Normal Mode: +/-0.1%
- Fast Mode: +/-0.5%
Zero Drift: +/- 20 μV/°C
Span Drift: +/- 25 ppm/°C
Input Impedance
- Voltage: 10 MΩ
- Current: 125 Ω
Overvoltage Protection: 120 VDC
Overcurrent Protection: Yes, 50 mA at 110 VDC
Open Wire Detection for 4 ~ 20 mA: Yes
Communication
Interface: RS-485
Format: (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Protocol: DCON, Modbus/RTU, Modbus/ASCII
Dual Watchdog: Yes, Module (2.3 seconds), Communication (Programmable)
LED Indicators
Power: 1 LED as Power Indicator
Isolation
Intra-module Isolation, Field-to-Logic: 2500 VDC
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal ; ±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power
Power Requirements
Reverse Polarity Protection: Yes
Powered from Terminal Block: Yes, 10 ~ 30 VDC
Consumption: 0.7 W Max.
Mechanical
Dimensions (W x L x H): 52 mm x 98 mm x 27 mm
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +75 °C
Humidity: 10 ~ 95% RH, Non-condensing
