features and benefits

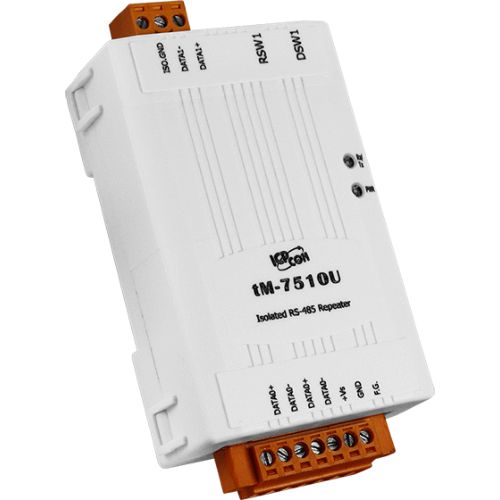

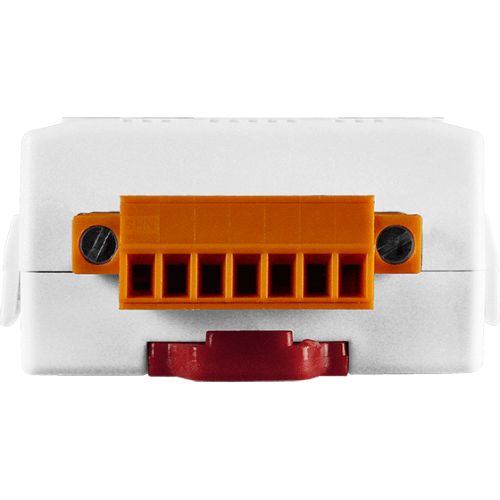

The tM-7510U repeater simply amplifies, or boosts, existing RS-485 signals to enable them to cover longer distances.
It extends the communication distance by 4000 ft.
(1200 m) or increases the maximum number of bus nodes.
The module provides 2500 VDC of isolation allowing you to separate and protect critical segments of the system from the rest of the RS- 485 network. The tM-7510U provides 2 modes of baud rate setting, one is Self-Tuner mode and the other is Fixed baud rate mode.
The Self-Tuner mode can support multiple baud rate and multiple data format.
The Self-Tuner design is exactly the same as I-7510 series.
The Fixed baud rate mode offers a better quality for data transmission over long or lossy lines or electrically noisy environments.
- 2-way 2500 VDC Isolation Protection
- ESD Protection for RS-485 Data Line
- Low power consumption
- Long-cable application
- Power and data flow indicator for troubleshooting
- Easy-to-use rotary switch for baud rate setting, 1200 ~ 115200 bps
- Tiny packaging fits on your DIN-Rail Mounting
specifications
Isolation| Intra-module Isolation | 2500 VDC 2-way Isolated |
|---|
EMS Protection| ESD (IEC 61000-4-2) | Yes, Contact for Each Terminal |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 300 ~ 115200 bps for Self-Tuner | 1200 ~ 115200 bps for Fixed baud rate setting |
|---|
| Bias Resistor | Yes, 1 K? |
|---|
| Node Address | 254 (max.) |
|---|
Power| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
|---|
| Consumption | 0.6 W |
|---|
Mechanical| Casing | Plastic |
|---|
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +75 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
