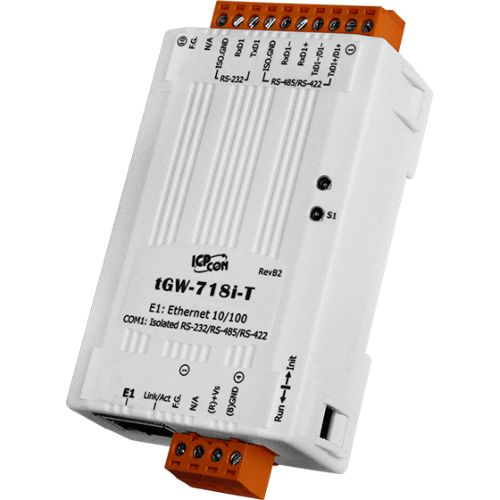

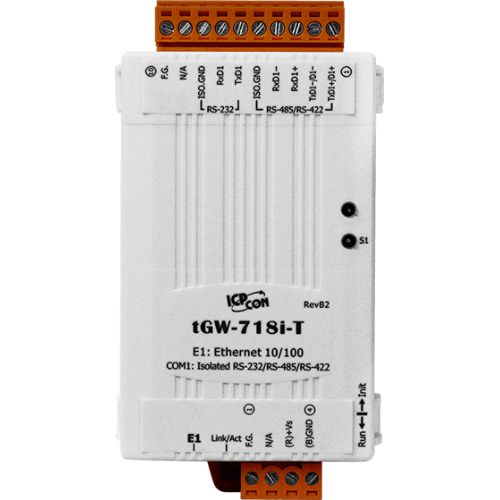

tGW-718i-T CR, Tiny Modbus/TCP to RTU/ASCII Gateway and 1-port Isolated RS-232/422/485. Robust version of tGW-718-T
tGW-718i-T CR
Tiny Modbus/TCP to RTU/ASCII Gateway and 1-port Isolated RS-232/422/485. Robust version of tGW-718-T
Free Shipping
Features
- Supports Modbus TCP/UDP master and slave
- Supports Modbus RTU/ASCII master and slave
- Max. TCP connections (masters) per serial port: 32
- Read-cache ensures faster Modbus TCP/UDP response
- Supports UDP responder for device discovery (UDP Search)
- Static IP or DHCP network configuration
- Tiny Web server for configuration (HTTP)
- Allows automatic RS-485 direction control
- Terminal block connector for easy wiring
- Cost-effective Modbus gateway
Introduction
Modbus has become a standard industrial communication protocol, and is now the most commonly available means of connecting industrial electronic devices. Modbus allows for communication between many devices connected to the same RS-485 network, for example, a system that measures temperature and humidity and communicates the results to a computer. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems.
Applications
Factory, Building and Home Automation Remote Diagnosis and Management Solar Monitoring
Specifications
CPU Module
CPU: 32-bit ARM
COM Ports
Ports: 1 x 3-wire RS-232/RS-485/RS-422 (3000VDC Signal Isolation)
Baud Rate: 115200 bps Max.
Bias Resistor: Yes, 1 KΩ
Parity: None, Odd, Even, Mark, Space
Data Bit: 5, 6, 7, 8
Stop Bit: 1,2
Node Address: 254 (max.)
Ethernet
Ports: 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
Power
Consumption: 0.07 A @ 24 VDC
Powered from Terminal Block: +12 ~ 48 VDC
Mechanical
Casing: Plastic
Dimensions (mm): 52 mm x 95 mm x 27 mm (W x H x D)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, non-condensing
