SG-785 CR
RS-485 pull-high/pull-low and termination resistors module
- Switch selectable pull-high/pull-low resistors

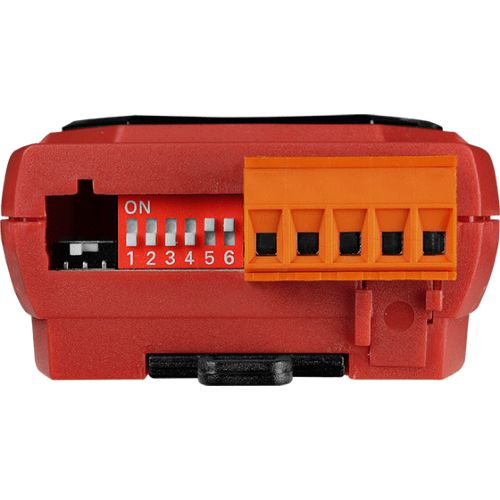

- 15-step switch selectable termination resistor
- LED Indicator for Power/Termination

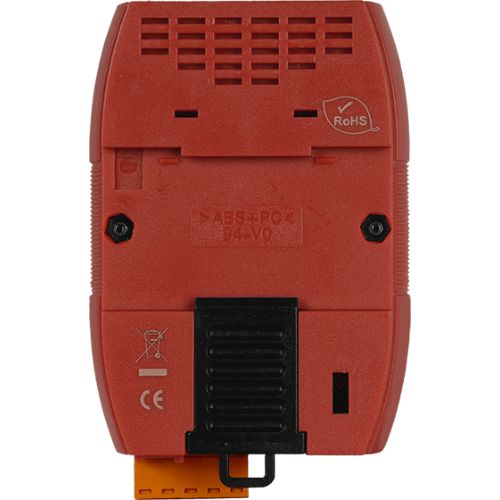

- DIN-Rail mountable
INTRODUCTION
The SG-785 is an optional module that is used to improve the communication of RS-485 network. It provides switch selectable pull-high and pull-low resistors on RS-485 network. It also has 15-step switch selectable termination resistor such that the user can select a proper termination resistor to be connected to the RS-485 network easily.
APPLICATIONS
RS-485 signal pull-high/pull-low and long distance communication termination resistor setting.
SPECIFICATIONS
Interface: RS-485
Pull-high/pull-low Resistance: 1k ohm
Termination Resistance: 15 steps, 65 ~ 560 ohm
LED Display: 1 red LED as power indicator, 1 green LED as termination indicator
Power
Input Range: 10 ~ 30 VDC
Power Consumption: 0.5 W
Environment
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -40 °C ~ +80 °C
Humidity: 5% ~ 95% RH, Non-condensing
