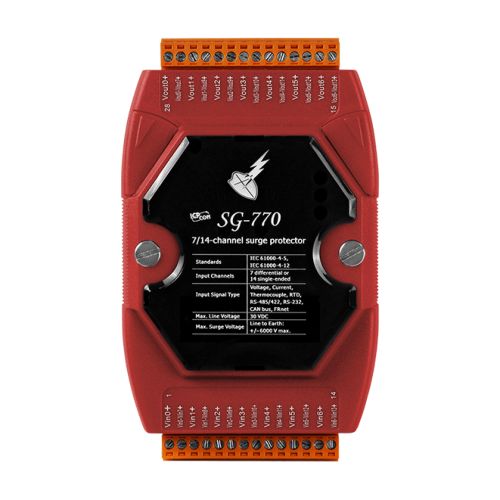

SG-770 CR, 7 channel Surge Protector (RoHS)
SG-770 CR
7 channel Surge Protector (RoHS)
Free Shipping
features and benefits
SG-770 offers 7 differential for surge protection.
SG-770 is approved with IEC 61000-4-5 and IEC 61000-4-12 standards.
Each of channels supports 0 V ~ ±30 V signal and each of channels is protected for surge achieves 6 kV.
- IEC 61000-4-5, IEC 61000-4-12
- 6 kV Surge Protection
- Easily wire connection
specifications
| Standard | IEC 61000-4-5 (Surge): Line to Earth: +/- 6000V Max. | IEC 61000-4-12 (Surge): Line to Earth: +/- 6000V Max. |
|---|
| Channels | 7 differential |
|---|---|
| Type | Voltage, Current, Thermocouple, RTD, RS-485/422, RS-232, CAN bus, FRnet |
| Range | 30 VDC |
| Dimensions (mm) | 73 x 120 x 35 (W x L x H) |
|---|---|
| Installation | DIN-Rail |
| Operating Temperature | -25 °C ~ 75 °C |
|---|---|
| Storage Temperature | -30 °C ~ 75 °C |
| Humidity | 5% ~ 95% RH, Non-condensing |
