SG-3383 CR
3-channel DC Current Signal Splitter
The SG-3383 is a 1-channel current input to 3-channel current output signal conditioning module, and provides 3000 VDC three-way isolation for input, output and power, together with 8 kV ESD Protection as well as 3000 VDC intra-module isolation.
The SG-3383 has an LED display that is used to indicate whether the module is functioning correctly, and includes VRs (Zero, Span) that can be used to calibrate the output range accuracy. The input bandwidth of the SG-3383 is typically 2.5 kHz.
The SG-3383 can be easily mounted on a standard DIN Rail and can operate in environments where there is a wide temperature range.

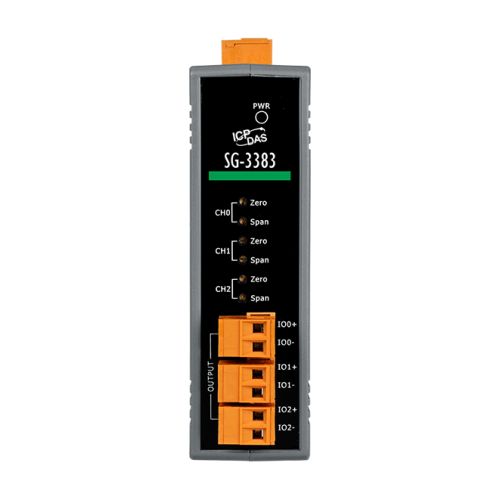

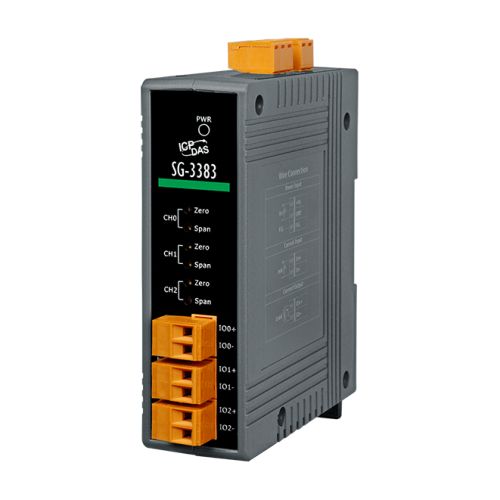

SG-3383 CR: Isolated DC Current 1-channel Input to 3-channel Output Module (Gray Cover) (RoHS)
- 1-channel current input to 3-channel current output
- 8 kV ESD Protection
- Three-way Isolation: 3000 VDC
- Flexible DIN-rail Mounting
- Wide Operating Temperature Range: -25 to +75°C
Analog Input
Channels: 1
Range: +4 ~ +20 mA
Input Bandwidth: 2.5 kHz
Input Impedance: 125 Ω
Analog Output
Channels: 3
Current Output Wiring: Source
Range: +4 ~ +20 mA
Accuracy: ±0.1% of FSR (typical)
Current Output Capacity: 500 Ω
LED Indicators/Display
System LED Indicator: Yes, 1 as Power/Communication Indicator
I/O LED Indicators: -
7-segment LED Display: -
Isolation
Intra-module Isolation, Field-to-Logic: 3000 VDC
EMS Protection
ESD (IEC 61000-4-2): ±8 kV Contact for each Terminal
EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): -
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 2.5 W
Mechanical
Dimensions (L x W x H): 99 mm x 33 mm x 127 mm
Installation: DIN-Rail or Wall Mounting
Environment
Operating temperature: -25 to +75°C
Storage temperature: -40 to +85°C
Humidity: 10 to 95% RH, Non-condensing
