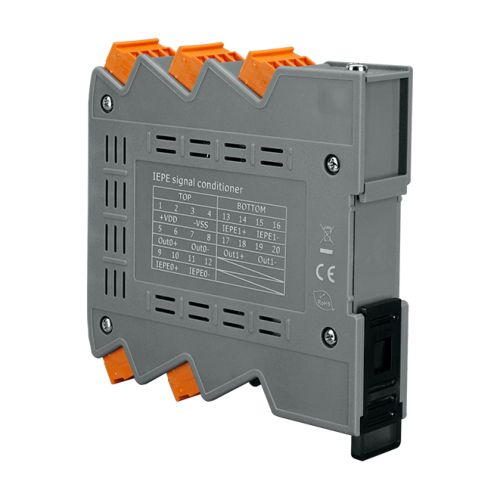

SG-3227 CR, 2-channel IEPE Input Signal Conditioner Includes CA-BNC001 (BNC adaptor) x 2
SG-3227 CR
2-channel IEPE Input Signal Conditioner Includes CA-BNC001 (BNC adaptor) x 2
Free Shipping
Features
- 2-channel Input
- Individual Channel Configuration
- Excitation Current Support: 2 mA/4mA/6mA/10mA
- Signal Amplification of x1 , x10 and x100
- LED Indicators for Sensor Open, Short and Normal
Introduction

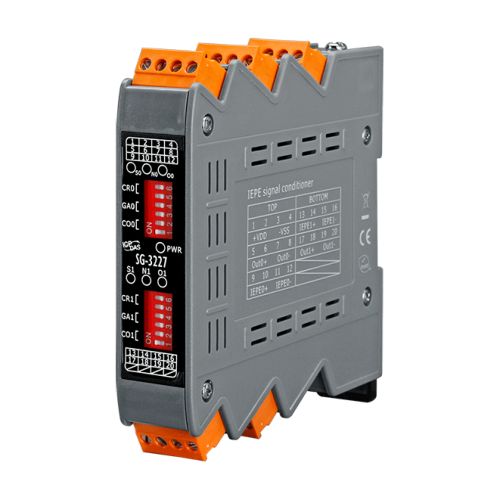

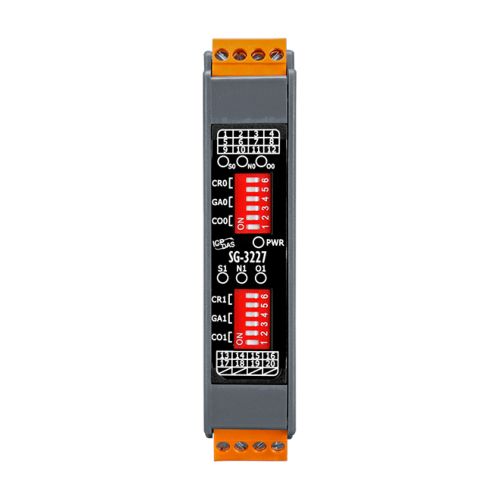

SG-3227 is a 2-channel IEPE accelerometer signal conditioning module. It has built-in 2 groups of DIP switches, which can be individually set for 2 channels. Provide 2mA/4mA/6mA/10mA excitation current to the accelerometer, and the built-in amplifier can provide x1/x10/x100 gain. LED lights can clearly show the status of the sensor is normal, open circuit or short circuit, to avoid wiring errors.
Applications
Vibration Measurement
Remote Diagnosis
Testing Equipment
Specifications
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
Surge (IEC 61000-4-5): ±1 kV for Power Line
LED Indicators
Status: 1 as Power Indicator
Yellow : Sensor Open
Green : Sensor Normal
Red : Sensor Short
IEPE
Channels: 2
Excitation Current: 2 mA/4 mA/6 mA/10 mA
Gain: x1/x10/x100 for AC Coupling
Cut-off Frequency+: •Upper:
‣x1, x10 Gain: 80 kHz
‣x100 Gain: 50 kHz
•Lowe
‣AC Coupling (0.1uF): 1.6 Hz
‣AC Coupling (1uF): 0.2 Hz
Analog Output
Channels: 2
Type: Voltage
Range: ±10 V
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 3 W
Mechanical
Dimensions (mm): 25 mm x 120 mm x 117 mm (W x L x H)
Installation: DIN-Rail or Wall Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
