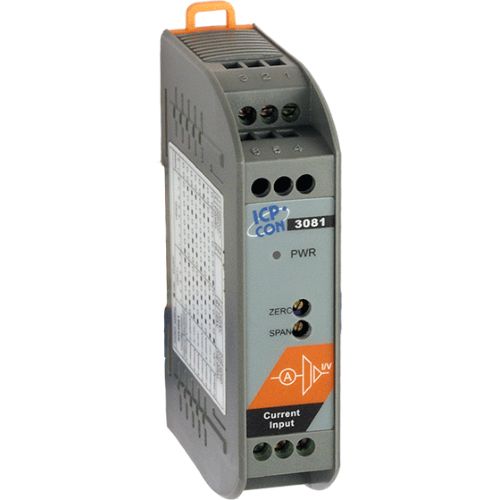

SG-3081-G CR ICP DAS Signal Conditioner

• 3000Vdc isolation (three-way)
• Wide input/output range
• Stable voltage or current output
• Easy to configure input/output range
• Two VRs for calibrating accuracy of the input/ output range
• Flexible DIN-rail mounting
• LED indicator

SPECIFICATIONS

Analog Input
Input Channels: 1
Input Type (Unipolar): 0 ~ 20 mA, 4 ~ 20 mA
Input impedance: 250 Ω
Input bandwidth: 1KHz

Analog Output
Channels: 1
Voltage Output (Unipolar): 0 ~ 5 V, 0 ~ 10 V
Voltage Output impedance: <50 Ω (10 mA max)
Current Output (Source): 0 ~ 20mA, 4 ~ 20mA
Current load resistor: 0 ~ 500 Ω (Source)

Other specifications
Three-way isolation: 1000 VDC
Accuracy: ±0.1% of full range
Weight: 95.5 gram

LED Display
1 LED as Power/Communication indicator

Power
Input: +10 ~ +30 VDC
Power Consumption: 1.61 W(Voltage Output), 2.10 W(Current Output)

Environment
Operating temperature: -25 °C ~ 75 °C
Storage temperature: -30 °C ~ 75 °C
Humidity: 5 ~ 95%, non-condensing
