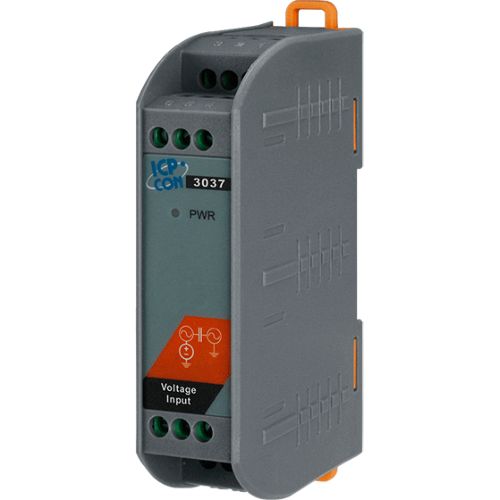

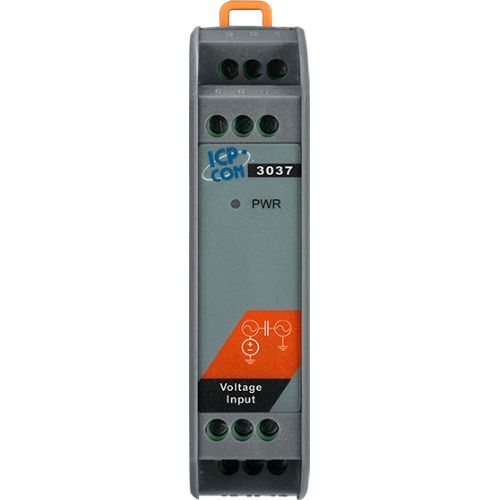

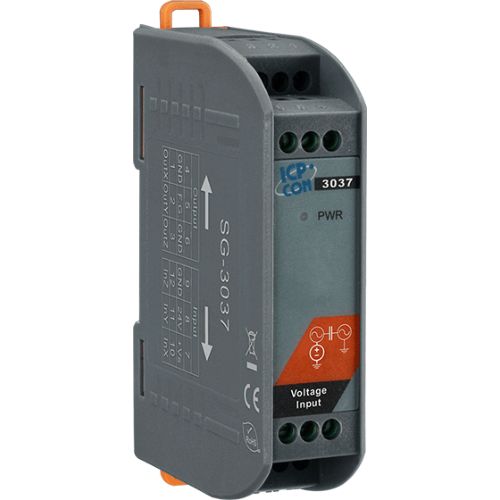

SG-3037-G CR, Triaxial signal conditioner for voltage output type accelerometer
SG-3037-G CR
Triaxial signal conditioner for voltage output type accelerometer
Features
- 3-channel voltage input & output
- Input voltage range: 0-24V
- Provides signal bandwidth: 50 kHz
- Provides 24V power supply for the accelerometer
Introduction
SG-3037 is a Triaxial Signal Conditioner. SG-3037 with 3-channel analog inputs can connect to the voltage output accelerometer, and convert the signal measured from the accelerometer into the analog voltage output. PET-7H16M module collects the vibration data through SG-3037, and then send them via high-speed Ethernet to the data center for processing and analysis.
Applications
Data Acquisition System
Remote Diagnosis
Vibration Measurement
Testing Equipment
Specifications
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
Surge (IEC 61000-4-5): ±1 kV for Power Line
LED Indicators
Status: 1 as Power Indicator
Analog Input
Channels: 3
Type: Voltage
Range: 0 ~ 24 VDC
Accuracy: ±5% of FSR
Bandwidth: 50 kHz
Analog Output
Channels: 3
Type: Voltage
Range: ±10 VDC
Excitation Voltage Output:
Range: 24 VDC
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 1.5 W
Mechanical
Dimensions (mm): 25 mm x 114 mm x 70 mm (W x L x H)
Installation: DIN-Rail or Wall Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
