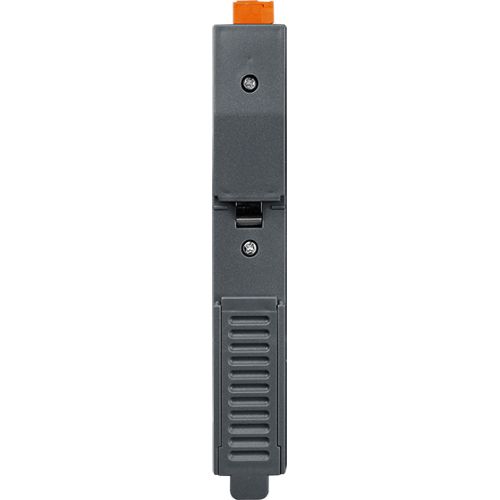

RSM-405-R CR
5-Port Real-time Redundant Ring Switch with metal case (+12 ~ +48 VDC, non-isolation)
The RS-405 series is a 5-Port Industrial Ethernet (10/100Base-TX) Real-Time Redundant Ring Switch. RS-405 series supports 10/100M auto-negotiation feature and auto MDI /MDIX function. It can automatically switch the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The connectors of Ethernet port are shielded RJ-45. The shielded RJ-45 connectors offer a high reliability Ethernet environment for industrial control and automation.
Built-in ICP DAS Cyber-Ring technique that enable multiple switches to be placed into a redundant ring. Typically it detects and recovers from a copper link failure within approximately 20 ms – for the majority of applications a seamless process. The RS-405 series is much more easy to use and absolutely free of software setting. After unpacking from the shipping case, it just takes one or two dip or rotary switch to make it work.
The RS-405 series provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the RS-405 series 's power needs. And, the relay output facility can deliver warning signal while dual power or network link failure.
RS-405M-R CR: 5-Port Real-time Redundant Ring Switch with metal case (RoHS) (+12 ~ +48 VDC, non-isolation)
- Automatic MDI / MDI-X crossover for plug-and-play
- Each port supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 3.2 Gbps high performance memory bandwidth
- Frame buffer memory: 1 Mbit
- 2048 MAC addresses
- Redundant Power Inputs +10 ~ +30 VDC
- Power failure alarm by relay output
- Supports operating temperatures from -40°C ~ +75°C
- DIN-Rail mount for industrial usage
Technology
Standards: IEEE 802.3, IEEE 802.3u, IEEE802.3x
Processing Type: Store & forward wire speed switching
MAC Addresses: 1024
Memory Bandwidth: 3.2 Gbps
Frame Buffer Memory: 1 Mbit
Flow Control: IEEE 802.3x flow control, back pressure flow control
Interface
RJ-45 Ports: 5 x 10/100 Base-TX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators: Power, 10/100M, Link/Act, Master
Ethernet Isolation: 1500 Vrms 1 minute
COM1: RS-232 (TxD, RxD and GND); Non-isolation
COM2: V
Connection: Yes
Power Input
Input Voltage Range: +10 ~ +30 VDC (Isolation redundant input)
Power Consumption: 0.22 A @ 24 VDC, +/-5% arrowed with 100M Full duplex
Protection: Power reverse polarity protection
Frame Ground for EMS Protection: Yes
Connection: 5-Pin Removable Terminal Block
Mechanical
Casing: Metal
Environmental Rating: IP30 Protection
Dimensions (W x L x H): 25 mm x 168 mm x 119 mm
Installation: DIN-Rail Mounting
Environmental
Operating Temperature: -40 °C ~ + 75 °C
Storage Temperature: -40 °C ~ + 85 °C
Ambient Relative Humidity: 10 ~ 95% RH, non-condensing
Accessories
Include Cable: CA-090510 x 1
