RS-405FT CR

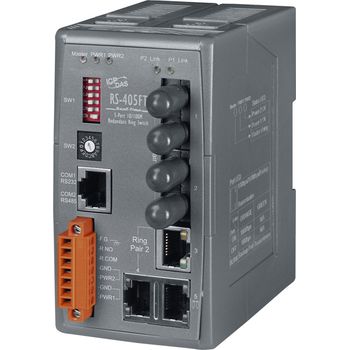

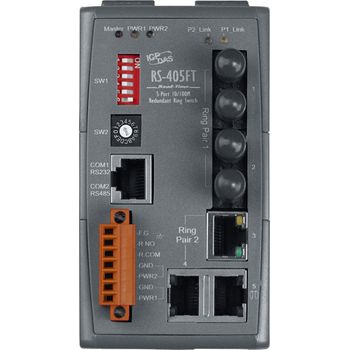

5-Port Real-time Redundant Ring Switch with 2-Fiber Port (Multi Mode, ST Connector)
- Automatic MDI / MDI-X crossover for plug-and-play
- Each port supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 3.2Gbps high performance memory bandwidth
- Frame buffer memory: 512 Kbit
- Integrated look-up engine with dedicated 1 K unicast MAC addresses.
- Redundant Power Inputs +10 ~ +30V DC
- Power failure alarm by relay output
- Supports operating temperatures from 0 ~ +70°C
- DIN rail mount and Screw hole for wall mounting kit.
The RS-405FT is a 5-Port Industrial Ethernet Real-Time Redundant Ring Switch with 2-Port Fiber (ST Connector; Multi-mode) that secures data transmission by using fiber optics transmission to provide immunity from EMI/RFI interference. It is used Ethernet for transmitting a signal up to 2 km(6,600 ft), and is the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion.
Fiber port of RS-405FT operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex mode, range is 412m with 62.5/ 125μm fiber cables. The Ethernet port of RS-405FT supports 10/ 100M auto-negotiation feature and auto MDI /MDIX function.
Built-in ICP DAS Cyber-Ring technique that enable multiple switches to be placed into a redundant ring. It detects and recovers from a fiber or copper link failure within approximately 50ms – for the majority of applications a seamless process. Modbus/TCP, Modbus/RTU and OPC supported, SCADA application can monitor status of Ethernet and fiber port with Modbus or OPC protocol.
RS-405FT provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the RS-405FT's power needs. And, the relay output facility can deliver warning signal while dual power or network link failure.
Technology
Standards: IEEE 802.3, IEEE 802.3u, IEEE802.3x
Processing Type: Store & forward wire speed switching - no delays
MAC addresses supported: 1024
Memory Bandwidth: 3.2 Gbps
Flow Control: IEEE802.3x flow control, back pressure flow control
Redundant strategy: STP, Ring(ICP DAS)
Protocol: Modbus/RTU, Modbus/TCP, OPC, STP, Cyber Ring
Interface
RJ45 port: 10/100BaseT(X) auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection
Fiber Optics Port: 100 Base-FX(Multi-mode; ST connector)
LED Indicators: 10/100M, Link/Act/Backup, Full duplex/Half duplex(Fiber Port)
Ethernet Isolation: 1500 Vrms 1 minute
Frame Ground for EMS Protection: Yes
Ethernet Transmission distance:
Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Fiber Optic Transmission distance:
Multi mode fiber cables:50/125, 62.5/125 or 100/140 μm
Distance:2 km, (62.5/125 μm recommended) for full duplex
Wavelength: 1300 or 1310nm
Min. TX Output: -20 dBm
Max. TX Output: -14 dBm
RX Sensitivity: -34 to -31 dBm
Ethernet Cables:
10 Base-T (Cat.3, 4, 5 UTP cable; 100m Max.)
100 Base-TX (Cat.5 UTP cable; 100m Max.)
Management interface: Console, DIP/Rotary Switch
Alarm output: Relay
Power
Input Voltage Range: +10 ~ +30VDC(Removable Terminal Block)
Power Input isolation: 1KV
Alarm Contact: One relay output with current carrying capacity of 2A @ 30 VDC
Power consumption: 0.3A@24Vdc (+/- 5%, arrowed)
Protection: Power reverse polarity protection
Frame Ground for EMS Protection: Yes
Connection: 7-Pin Removable Terminal Block
Mechanical
Case: Plastic
Flammability: UL 94V-0
Dimensions: 64mm x 110mm x 98mm (W x H x D)
Installation: DIN rail mount; Wall Mounting
Environmental
Operating temperature: 0 °C~ +70°C
Storage Temperature: -20 ~ +85°C
Relative Humidity: 10% to 90% non-condensing
Include cable
CA-090510 x 1
