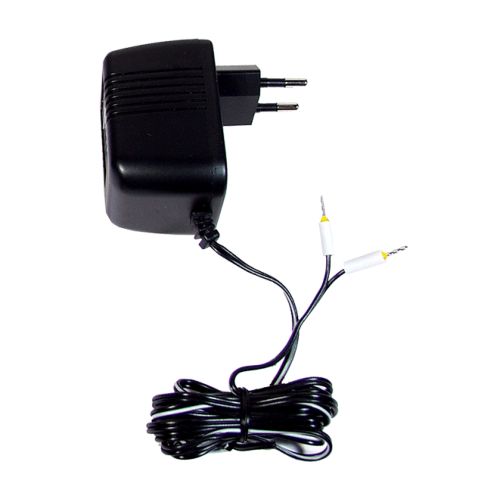

PWR-24/230R CR, Power Supply, 230 VAC to 24 VDC/0.2 A, 4.8 W, two pins EURO plug
PWR-24/230R CR
Power Supply, 230 VAC to 24 VDC/0.2 A, 4.8 W, two pins EURO plug
Features
Cost-effective power adaptor
Input 230 VAC 50 Hz: 55 mA
Secondary no load: DC voltage: 29.2 V; +/- 5%
Secondary DC voltage: Load 200 mA: 24.0 V;+/-5% (4.8 AV)
High protection test:
PRI. TO SEC. & CORE : AC 1240/min
SEC TO CORE : AC 500 V
Specifications
Input
Voltage Range: 220 VAC
Frequency Range: 50 Hz
Output
DC Voltage: no load: 29.2V ; +/- 5%
load 200mA: 24.0V ;+/-5% (4.8AV)
Rated Power: 4.8 W
Rated Current: 0.2A
Mechanical
Casing: Plastic
Dimensions (mm): (51 * 41 * 63)mm
Environment
Operating Temperature: 0 ~ 50 °C
