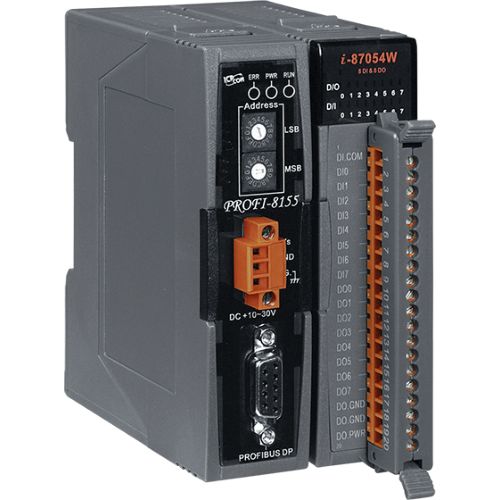

PROFI-8155-G CR
PROFIBUS Remote I/O Unit with 1 I/O Slot
The PROFI-8155/8255 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 1/2 slots for ICPDAS I-8k series, I-87k Low Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.
- Protocol & Hierarchy: DP-V0 & DP-V1 (Read/Write) Slave
- Supports Transmission Rate (Kbps): 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
- Transmission Rate Setting: detected automatically
- Address Setting: 0~126 set by Rotary switches
- SSA-telegram set by DP-Master(Class 2 only)
- Indicators: PWR, ERR, and RUN LEDs
- I/O modules Configuration: Configured by GSD file
- Supports I/O modules hot-swap: I-87K High Profile series
- Network Isolation Protection: High Speed iCoupler
- DC Isolation Protection: 3000VDC on PROFIBUS side
- 4KV ESD Protection: Contact for each terminal
HARDWARE SPECIFICATIONS
Hardware
CPU: 80186, 80 MHz or compatible
SRAM/Flash/EEPROM: 512 KB / 512 KB / 2 KB
Watchdog: Watchdog IC
CPU built-in
Expansion Slot: 1 slot
ESD Protection: 4 kV class A
PROFIBUS Interface
Controller: Profichip VPC3+C
Transceiver: ADI ADM2486
Connector: 9-pin female D-Sub
Baud Rate (bps): 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m): Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol: DP-V0
DP-V1
UART Interface
COM: RS-232 on board (For updating firmware)Note 1.
LED
Round LED: PWR LED, RUN LED, ERR LED
Power
Power supply: Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 3 W
Mechanism

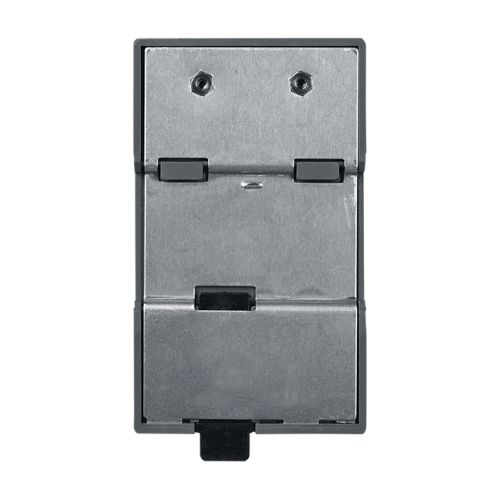

Installation: DIN-Rail
Dimensions: 95 mm x 91 mm x 132 mm (W x L x H)
Environment
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -40 ~ 80 ℃
Humidity: 5 ~ 95% RH, non-condensing
