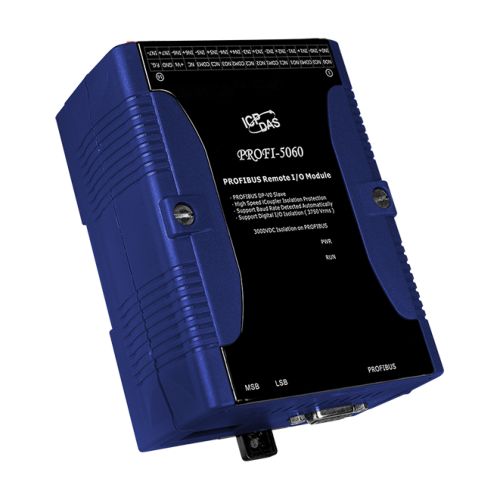

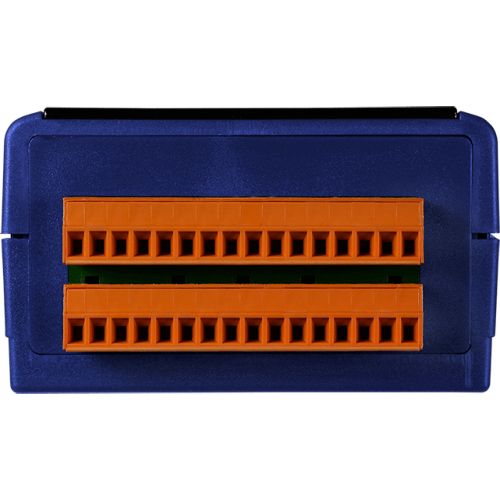

PROFI-5060 CR
PROFIBUS Remote I/O Module (8-channel Isolated Digital Input and 4-channel Relay Output)
The PROFI-5060 is one of the PROFIBUS DP series products produced by ICP DAS. It provides the
PROFIBUS DP communication protocol with any DP-Masters. The PROFI-5060 provides ±4KV ESD
protection contacting for all terminals (include I/O Terminals and PROFIBUS connector). By applying
the PROFI-5060, users can easily establish a PROFIBUS DP network with other DP-Masters. In
advance, it can be used in the application of building automation, remote data acquisition,
environment control and monitoring, laboratory equipment & research, factory automation, etc..
- Support for PROFIBUS DP-V0 protocol
- Detect transmission rate automatically(Max. 12Mbps)
- Address 0~99 set by rotary switches
- Network Isolation Protection
- 3000VDC isolation protection on PROFIBUS side
- 4KV ESD Protection (contact for any terminal).
- Wide range of power input (DC 10~40 VDC) and
- operating temperature (-25°C~+75°C)
HARDWARE SPECIFICATIONS
Hardware
ESD: Protection 4 kV class A
PROFIBUS Interface
Controller: Profichip VPCLS2
Transceiver: ADI ADM2486
Connector: 9-pin female D-Sub
Baud Rate (bps): 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m): Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol: DP-V0
LED
Round LED: PWR LED, RUN LED
Power
Power supply: Unregulated +10 ~ +40 VDC
Protection: Reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 1 W
I/O
Digital Output
4 Channels (Form C)
Contact Rating: 0.6A@125VAC, 2A@30VDC
Operating Time: 3ms. Release Time: 2ms. (Typical)
Minimum Life: 500,000 Ops.
Digital Input
8 Channels (Sink or Source), Isolated from each other
Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V
Input Impedance: 3KΩ in series with opto-coupler
Isolation Voltage: 3750Vrms
Mechanism
Installation: DIN-Rail
Dimensions: 91 mm x 128 mm x 52 mm (W x L x H)
Environment
Operating Temp.: -25 ~ 75℃
Storage Temp.: -30 ~ 80℃
Humidity: 10~90% RH,non-condens
