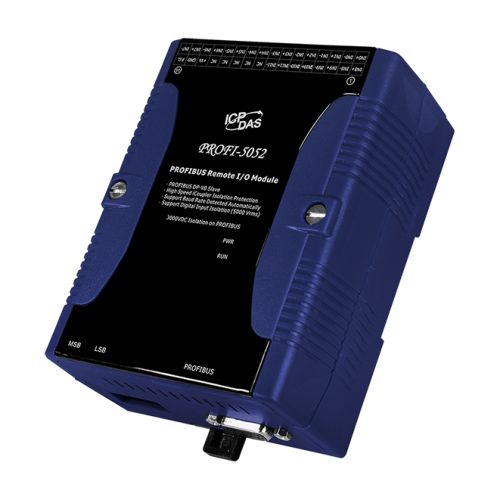

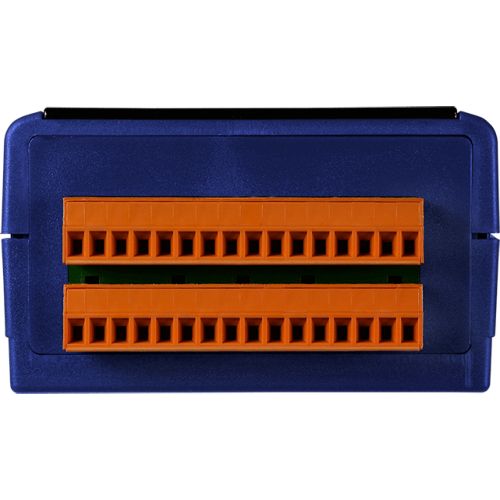

PROFI-5052 CR
PROFIBUS Remote I/O Module (12-channel Isolated Digital Input)
- Support for PROFIBUS DP-V0 protocol
- Detect transmission rate automatically(Max. 12Mbps)
- Address 0~99 set by rotary switches
- Indicators: PWR and RUN LEDs
- I/O modules Configuration: Configured by GSD file
- Network Isolation Protection: High Speed iCoupler
- 3000VDC isolation protection on PROFIBUS side
- 4KV ESD Protection (contact for any terminal).
- Wide range of power input (DC 10~40VDC) and operating temperature (-25°C~+75°C)
The PROFI-5052 is one of the PROFIBUS DP series products produced by ICP DAS. It provides the PROFIBUS DP communication protocol with any DP-Masters. The PROFI-5052 provides ±4KV ESD protection contacting for all terminals (include I/O Terminals and PROFIBUS connector). By applying the PROFI-5052, users can easily establish a PROFIBUS DP network with other DP-Masters. In advance, it can be used in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.
Hardware
ESD Protection: 4 kV class A
PROFIBUS Interface
Controller Profichip: VPCLS2
Transceiver: ADI ADM2486
Connector: 9-pin female D-Sub
Baud Rate (bps): 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m): Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol: DP-V0
LED
Round LED PWR LED, RUN LED
Power
Power supply Unregulated: +10 ~ +40 VDC
Protection Reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 1 W
I/O
Digital Input:
12 Channels (Sink or Source), Isolated from each other.
Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V
Input Impedance: 3KΩ in series with opto-coupler
Isolation Voltage: 5000Vrms
Mechanism
Installation DIN-Rail
Dimensions 91 mm x 128 mm x 52 mm (W x L x H)
Environment
Operating Temp. -25 ~ 75°C
Storage Temp. -30 ~ 85°C
Humidity 5 ~ 95% RH, non-condensing
