features and benefits

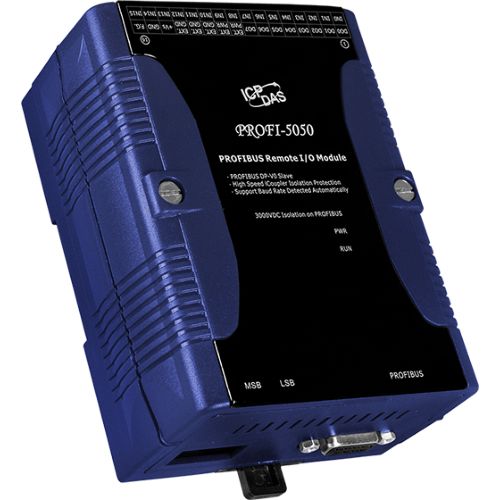

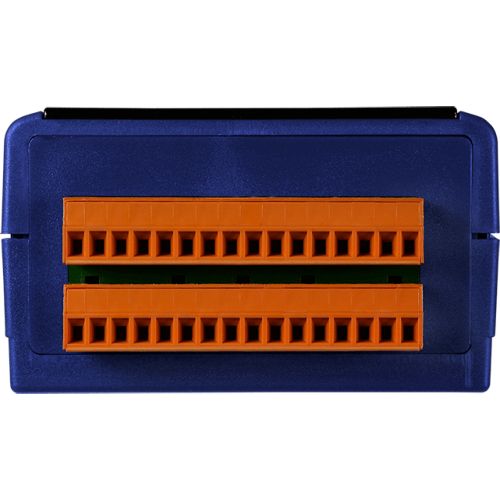

The PROFI-5050 is specially designed for the slave device of PROFIBUS DP protocol.
It supports up to 16-channel non-isolated digital input and 8-channel non-isolated digital output.
Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.
- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Address Setting : 0~99 set by rotary switches
- I/O modules Configuration : Configured by GSD file
- Network Isolation Protection : High Speed iCoupler
- DC Isolation Protection : 3000 VDC on PROFIBUS side
- 4KV ESD Protection : Contact for each terminal
specifications
LED Indicators| Status | PWR LED, RUN LED |
|---|
Digital Input| Channels | 16 Channels (Sink or Source), Non-Isolated with common ground(or source) | Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V |
|---|
Digital Output| Channels | 8 Channels (Sink), Non-Isolated with common ground | Load Voltage: +10 ~ +30V | Maximum Load Current: 30mA w/o Short-Circuit Protection |
|---|
PROFIBUS| Controller | Profichip VPCLS2 |
|---|
| Transceiver | ADI ADM2486 |
|---|
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
|---|
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
|---|
| Protocol | DP-V0 |
|---|
Mechanical| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
|---|
| Installation | DIN-Rail |
|---|
Environment| Operating Temperature | -25 ~ +75°C |
|---|
| Storage Temperature | -30 ~ +80 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
