features and benefits

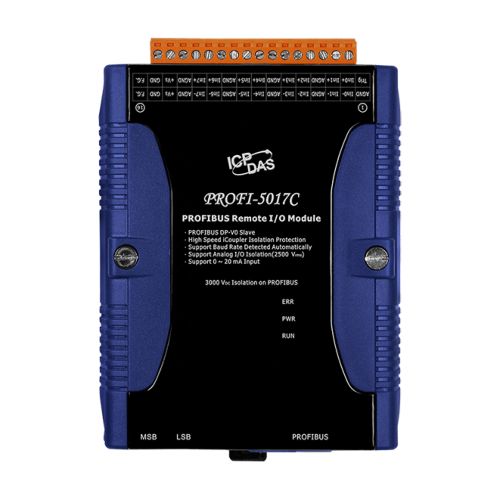

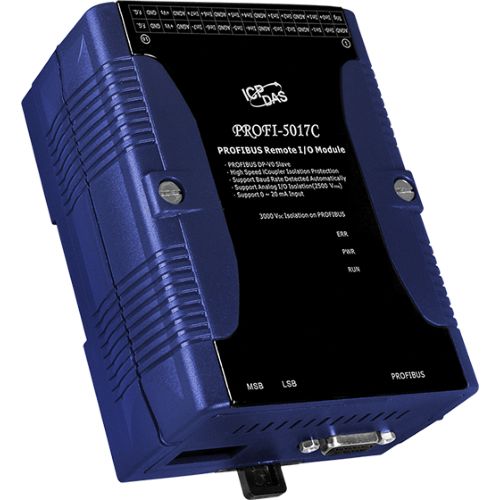

The PROFI-5017C is specially designed for the slave device of PROFIBUS DP protocol.
It supports up to 8-channel isolated analog current input with 2500Vrms field to logic isolation.
Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.
- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Address Setting : Address 0~126 set by rotary switches or SSA Telegram
- I/O modules Configuration : Configured by GSD file
- Network Isolation Protection : High Speed iCoupler
- DC Isolation Protection : 3000 VDC on PROFIBUS side
- 4KV ESD Protection : Contact for each terminal
specifications
CPU Module| CPU | 80186, 80 MHz or compatible |
|---|
| EEPROM | 2 KB |
|---|
| Flash | 512 KB |
|---|
| SRAM | 512 KB |
|---|
| Watchdog Timer | Watchdog IC | CPU built-in |
|---|
LED Indicators| Status | PWR LED, RUN LED, ERR LED |
|---|
Analog Input| Channels | 8 channel differential current input, Isolation Voltage:2500Vrms |
|---|
| Range | 0 ~ 20mA |
|---|
| Accuracy | +/- 0.2% of FSR |
|---|
PROFIBUS| Controller | Siemens SPC3 |
|---|
| Transceiver | ADI ADM2486 |
|---|
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
|---|
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
|---|
| Protocol | DP-V0 |
|---|
Mechanical| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
|---|
| Installation | DIN-Rail |
|---|
Environment| Operating Temperature | -25 ~ +75°C |
|---|
| Storage Temperature | -30 ~ +80 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
