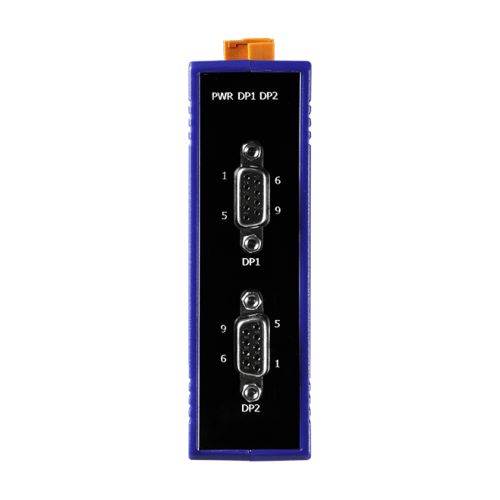

PROFI-2510 CR
Isolated PROFIBUS Repeater
- Protocol: PROFIBUS DP
- Detect transmission rate ( 9,6 ~ 12000 kbps)
- Max transmission speed up to 12 Mbps for PROFISUB
- Netword Isolation Protection: High Speed iCoupler
- 4 kV ESD Protection

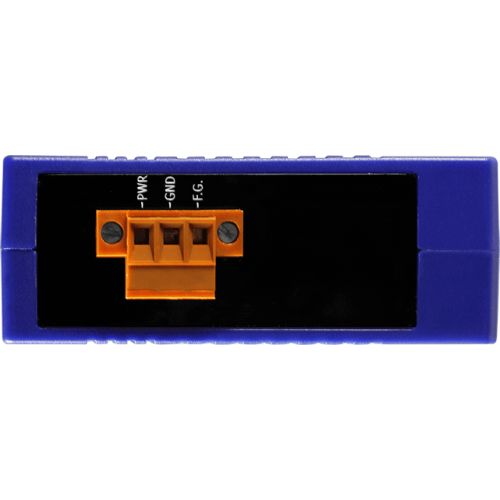

- Removable terminal block
- Mount easily on DIN-Rail
The PROFI-2510 is a PROFIBUS repeater used to establish a physical coupling of two or more segments of a PROFIBUS system. It supports transmission rate of 9.6 Kbps to 12 Mbps and detects the rate automatically. Users can implement bus star or tree topologies as well as the long drop lines with the PROFI-2510. Users can also extend the transmission of an existing network and increase the maximum number of bus nodes by using PROFI-2510.
Hardware
ESD Protection: 4 kV class A
PROFIBUS Interface
Transceiver: ADI ADM2486
Connector: 9-pin female D-Sub
Baud Rate (bps): 9.6k, 19.2k, 45.45k, 93.75k, 187.5k, 500k, 1 M, 3 M, 6 M, 12 M
Transmission Distance (m): Depend on baud rate ( for example, max 1200 m at 9.6 kbps)
Isolation: 3000 Vdc for DC-to-DC, 2500 Vrms for bus-to-logic
LED
Round LED: PWR LED, DP1 LED, DP2 LED
Power
Power supply: Unregulated +10 ~ +30 Vdc
Protection: Power reverse polarit protection, Over-voltage brown-out protection
Power Consumption: 1 W
Mechanism
Installation: Din-Rail
Dimension: 33mm x 126.8mm x 93.4mm (W x L x H)
Environmental
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +85 °C
Ambient Relative Humidity: 5% ~ 95% RH, non-condensing
