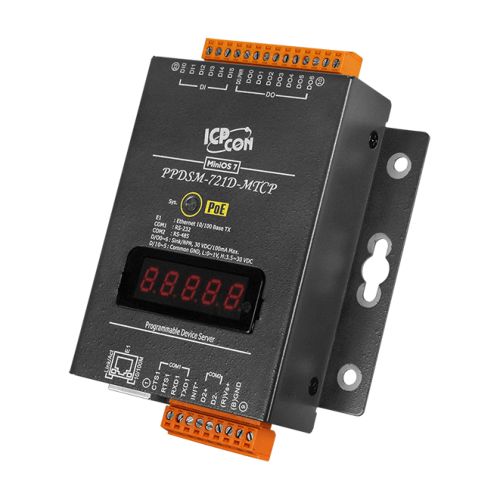

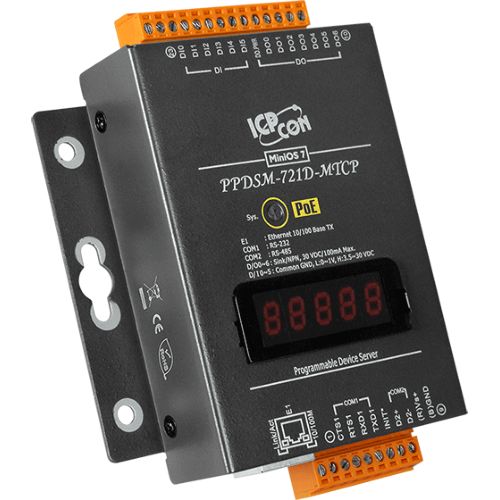

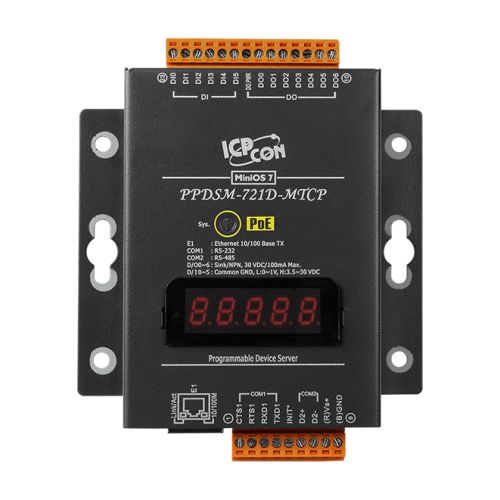

PPDSM-721D-MTCP CR ICP DAS Device Server with Modbus Gateway

PPDSM-721D-MTCP CR ICP DAS

PPDSM-721D-MTCP CR

Programmable (1x RS-232 and 1x RS-485) Serial-to-Ethernet Device Server with 6x Digital input, 7x Digital output, PoE, Modbus Gateway and LED Display (Metal Case)

Quantity:

Price

€ 263,32

(VAT excluded)

€ 321,25(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 321,25

Availability: 15 business days

SKU: 4462

Model: PPDSM-721D-MTCP CR

Need Help?


  • Incorporate Serial Devices in an Ethernet network
  • "Virtual COM" Extend COM Ports
  • Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
  • Powerful Programmable Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Power Reverse Polarity Protection
  • Serial Port +/-4 kV ESD Protection Circuit
  • Self-Tuner ASIC Controller on the RS-485 Port
  • 5-digit LED Display (for versions with a display)
  • RoHS Compliant with no Halogen
  • Built-in High Performance MiniOS7 from ICP DAS
  • 10/100 Base-TX Ethernet, RJ-45 Port
  • (Auto-negotiating, auto MDI/MDI-X, LED indicator)
  • ODM Service Is Available
  • Low power consumption
  • Palm-Sized with multiple Serial Ports
  • Made from fire retardant materials (UL94-V0 Level)
  • Supports D/I, Latched D/I and Counter Functions

Introduction

The PDS-700 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.
The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses.
The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol. The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.

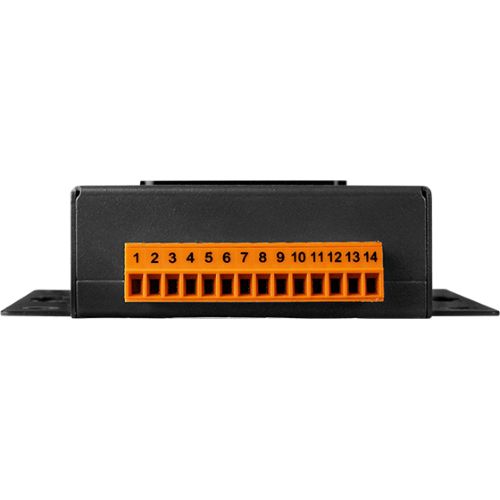

The PDS(M)-721(D) and PPDS(M)-721(D)-MTCP is equipped with 1 RS-232 port, 1 RS-485 port and DI/DO. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.


Applications

- Factory Automation
- Building Automation
- Home Automation

Digital Output

Output Channel 7
Output Type Open Collector (Sink/NPN)
Load Voltage 30 VDC, max.
Load Current 100 mA, max.
Isolated Voltage Non-isolated



Digital Input

Input Channel 6
Input Type Source (Dry Type), Common Ground
Off Voltage Level +1 V max.
On Voltage Level +3.5 ~ +30 V
Isolated Voltage Non-isolated
Counters Channels: 6
Max. Count: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms


CPU

CPU 80186-80 MHz or compatible
SRAM 512 KB
Flash Memory Flash ROM: 512 KB ; Erase unit is one sector (64 KB);
100,000 erase/write cycles
EEPROM 16 KB;
Data retention: 40 years; 1,000,000 erase/write cycles.
Built-in Watchdog Timer Yes
PoE IEEE 802.3af

Communication Interface

Non-isolated COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
COM2 RS-485 (D2+, D2-, GND)
RS-485 Bias Resistor Yes, 1 KΩ
Node 254 (max.)

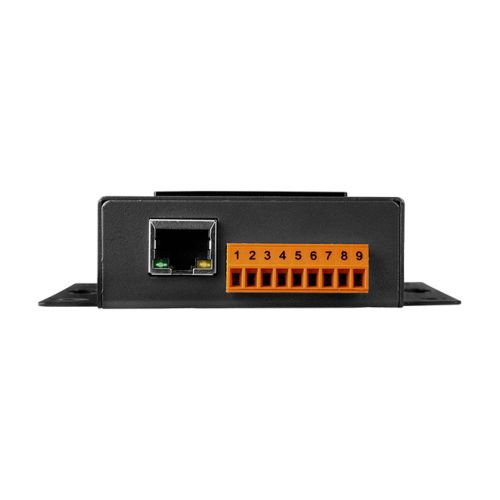

Ethernet 10/100 Base-TX, RJ-45 port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)


COM Port Formats

Data Bit 7, 8: for COM1 and COM2
Parity None, Even, Odd, Mark, Space
Stop Bit 1, 2: for COM1 ~ COM2
Baud Rate 115200 bps Max.



LED Indicators

5-digit 7 Segment Yes, only for "D" versions
System Red
PoE Green



Power

Protection Power Reverse Polarity Protection
Required Supply Voltage PoE or +12 VDC ~ +48 VDC (non-regulated)
Power Consumption PPDS(M)-721-MTCP: 2.2 W



Mechanism

Flammability Fire Retardant Materials (UL94-V0 Level)
Dimension (W x H x D) 72 mm x 123 mm x 35 mm (88 mm x 123 mm x 28 mm for "M" versions)
Installation DIN-Rail or Wall mounting
Casing Fire Retardant Plastic (Metal for "M" versions)



Environment

Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 90% RH, non-condensing
